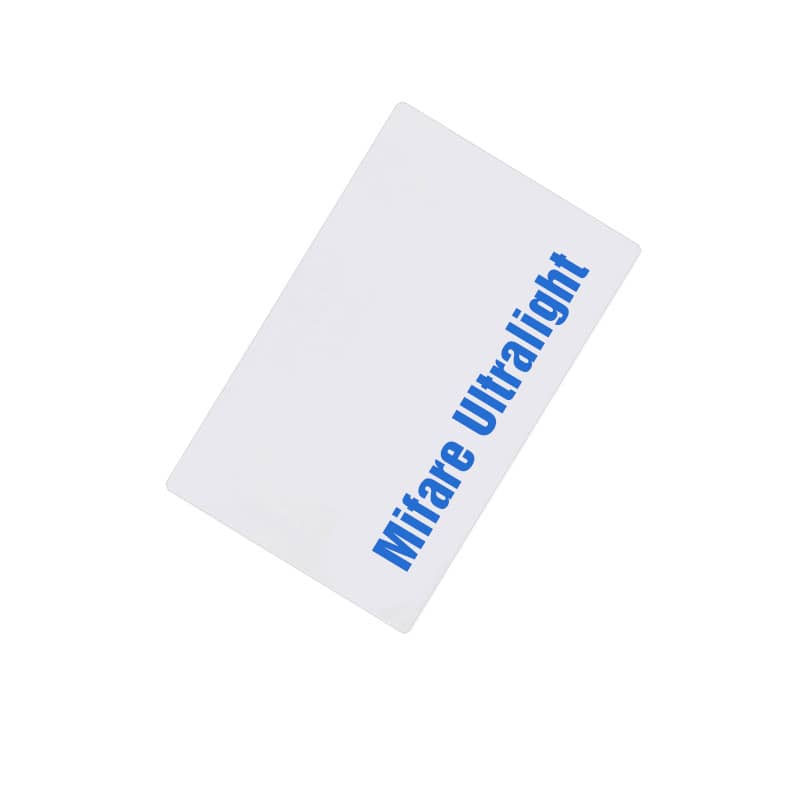

Mifare Ultralight RFID blank card is one of the HF frequency RFID cards with a white surface, embedded in the Mifare Ultralight EV1 chip. It is an easy and cost-efficient way to achieve contactless access control, identification, etc.
Mifare Ultralight EV1 chip is available in 2 memory options: 48 Bytes and 128 Bytes. You can choose according to your applications. If you are looking for a reliable supplier to buy RFID blank cards, Xinyetong is your best choice.
FEATURES
Advantages of Xinyetong RFID blank cards:
- High quality & Low cost
- Exquisite in craftsmanship: smooth and without burrs, no indentation.
- Timely delivery and good packing
- Support customization & Wholesale
- Excellent pre-sale and post-sale service
- 12 years of card-making experience
- Support customization & Wholesale
Features and Benefits of Mifare Ultralight EV1:
- Contactless transmission of data and supply energy
- Data transfer of 106 Kbit/s
- Data integrity of 16-bit CRC, parity, bit coding, bit counting
- 7-byte serial number (cascade level 2 according to ISO/IEC 14443-3)
- Fast counter transaction:<10 ms
- True anticollision
- Typical ticketing transaction:<35 ms
- Operating distance up to 100 mm (depending on antenna geometry and reader configuration)
- Manufacturer programmed 7-byte UID for each device
- 32-bit user definable One-Time Programmable (OTP) area
- 3 independent 24-bit true one-way counters
- Field programmable read-only locking function per page (per 2 pages for the extended memory section)
- ECC-based originality signature
- 32-bit password protection to prevent unintended memory operations
APPLICATION
- VIP membership management
- Parking lot
- Loyalty
- Public transportation
- Event Ticketing(stadiums, exhibitions, leisure parks, etc.)
- Campus access control management
- Limited-use tickets in public transport
Customized Service
Standard Mifare Ultralight blank card is the same size as a credit card: CR80 (85.5*54mm), but you can customize it. Xinyetong offers customized services, and you can tell us what kind of RFID blank card you need, including chip, size, shape, and other requirements.
Relevant articles
- 25 NFC Cards Reintroduce You to NFC Smart Cards
- 3 Types of Smart Cards in Access Control: Which better?
- What is RFID Smart Card?
- Why Hotels Use Key Cards Instead of Keys?
- The Most Complete Guide To Custom Smart Cards
- How to protect our RFID card? (Complete Guide)
- Mifare Cards VS Proximity Cards: What is the Difference?
Parameters
| Item | Mifare Ultralight RFID blank card |
| Material | PVC |
| Chip | Mifare Ultralight |
| Frequency | 13.56MHz |
| Protocol | ISO14443A |
| Color | White |
| Size | CR 80 or Custom |
| Reading distance | 0-10cm |
| Write Endurance | 100000 times |
| Working Temperature | -25°C to 65°C |
| Data Retention Time | 10 years |
| Printing Options | Silk-screen printing, Laser Engraving, CMYK full color, Pantone, etc. |
| Crafts Available | Logo or number printing, Bar code, QR code, etc. |
| Samples | Free samples are available upon request |
