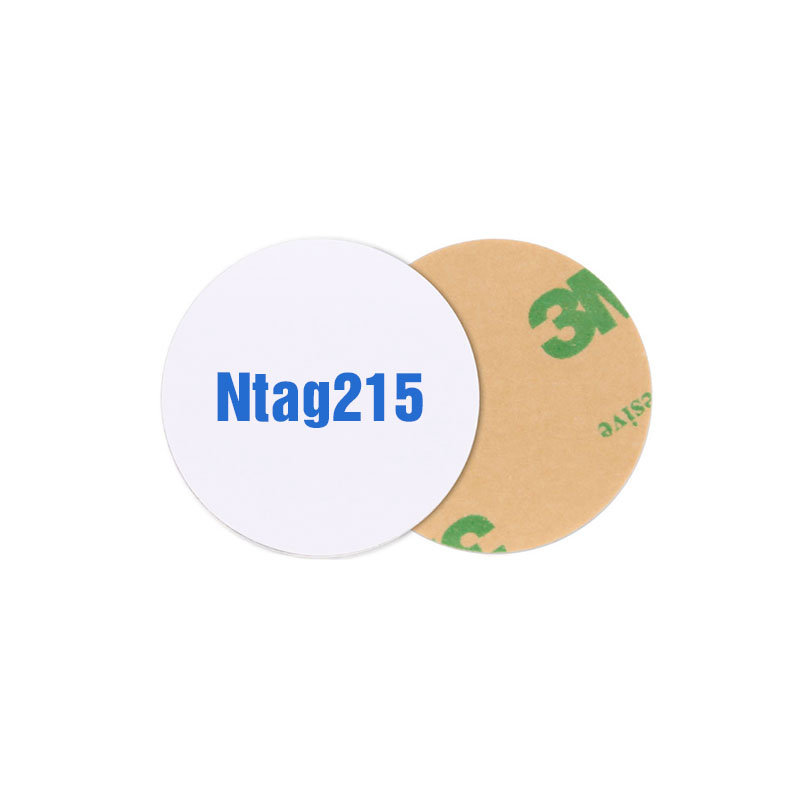

Disc Coin Card with NTAG215 Chip

Ntag215 Coin card, also known as Ntag215 Coin tag, is a kind of NFC tag with superior performance. It likes a coin that is the source of its name. It can be very small, and you can choose the size according to where do you use it or what do you use it for. Ntag215 coin cards can be used for anti-counterfeiting, tracking, payment, interaction, etc.

Xinyetong Ntag215 coin cards come in many sizes, with a diameter of 12mm, 15mm, 18mm, 20mm, 25mm, 30mm, etc. Whatever you want, we have a perfect solution for you.

Details
Specification
Download

DESCRIPTION

Ntag215 coin card, one of NFC tags, is a perfect solution for property tracking, social interaction, warehouse management, payment control, etc. Ntag215 coin card has an adhesive 3M backing, and it can be installed on the pallet, the cartons, the machine, etc.

If you want to use it in a harsh environment, such as a warehouse or factory, Xinyetong Ntag215 Coin Card is optional with filling epoxy technics, making it completely waterproof and oil proof. If you want to install it on the metal surface, you can choose the one which has an anti-metal layer.

FEATURES

A variety of sizes and materials are available
Affordable & high quality
Support customization
Operating frequency of 13.56MHz
100% compatible with NFC-enabled devices
Operating range up to 100mm (depending on various parameters)
504 bytes of user data
32-bit password authentication, better safety performance
Integrated originality signature, providing a simple but powerful product authentication method.

Parameters

Item	Ntag215 Coin Card
Material	PVC
Chip	NTAG213,NTAG215,NTAG216
Frequency	13.56MHz
Protocol	ISO14443A
Color	White
Size	φ15mm, φ18mm, φ20mm, φ22mm, φ25mm, etc.
Memory	144 bytes
Reading distance	0-10cm
Write Endurance	100000 times
Working Temperature	-25°C to 65°C
Data Retention Time	10 years
Samples	Free samples are available upon request
