Among the RFID chips of Type A, Mifare Classic 1K is the most representative one. It was born in 1994 and ushered in the era of contactless smart cards. Up to now, Mifare Classic 1K is still active in our daily life. For example, the MIFARE 1K RFID epoxy tag, which we will introduce next, has been widely used in access control, schools, Public transportation, etc.

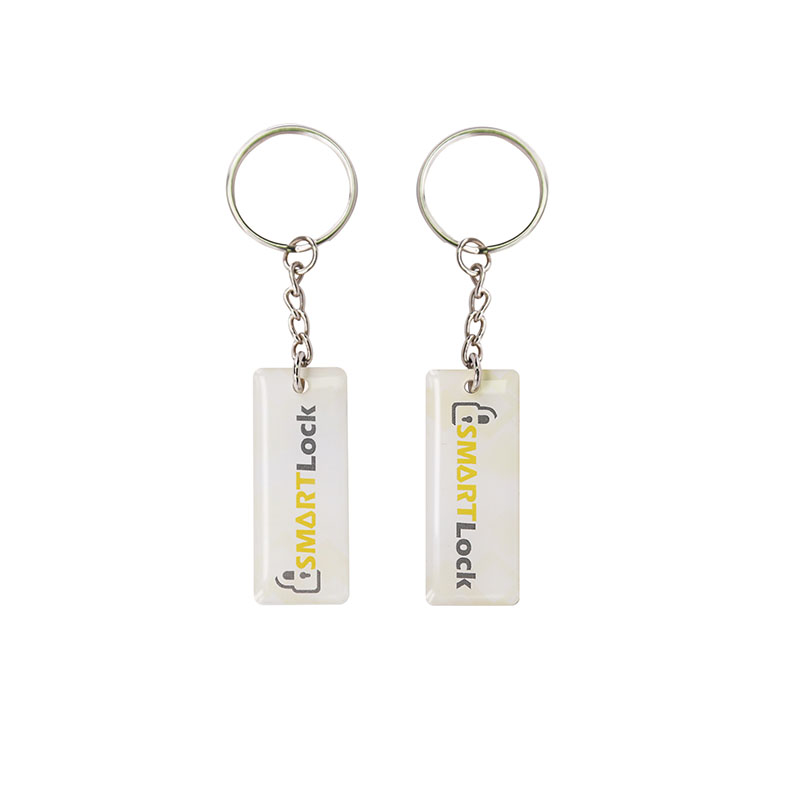

MIFARE Classic 1K RFID epoxy tag has the full features of the MIFARE Classic 1K chip and epoxy, powerful and attractive.
FEATURES
- Corrosion-resistant, water-proof, and shock-proof
- Small and exquisite, easy to carry
- Contactless transmission of data and supply energy
- Operating frequency of 13.56MHz
- Data transfer of 106 Kbit/s
- Data integrity of 16-bit CRC, parity, bit coding, bit counting
- Typical ticketing transaction time of<100ms (including backup management)
- Operating distance up to 100mm (depending on antenna geometry and reader configuration)
- Various styles and colors are available
APPLICATIONS
- Public transportation
- Access management
- Electronic toll collection
- Car parking
- School and campus cards
- Employee cards
- Internet cafes
- Loyalty
COMMONLY USED SIZE
In Xinyetong,you can customize your RFID epoxy tags. There are many colors, shapes, sizes, even chips that you can choose according to your preferences and requirements. If you don’t like the existing model product, you can tell us the size, shape, and material you want, and we can make it for you. Here are some popular RFID epoxy tags as follows.
Style | Size | Available Chip |

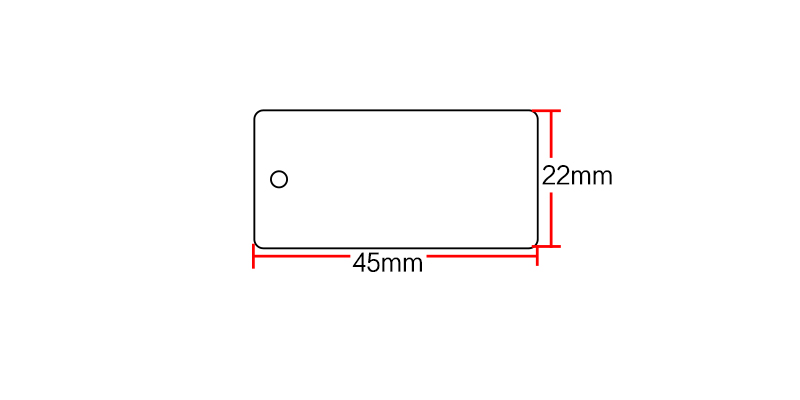

22*45 mm | MIFARE Classic 1K,Ntag213, Ntag215, Ntag216,etc. | |

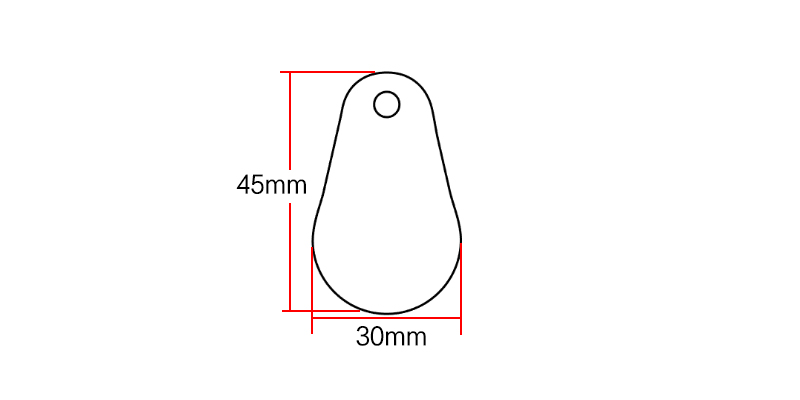

45*30 mm | MIFARE Classic 1K,Ntag213, Ntag215, Ntag216,etc. | |

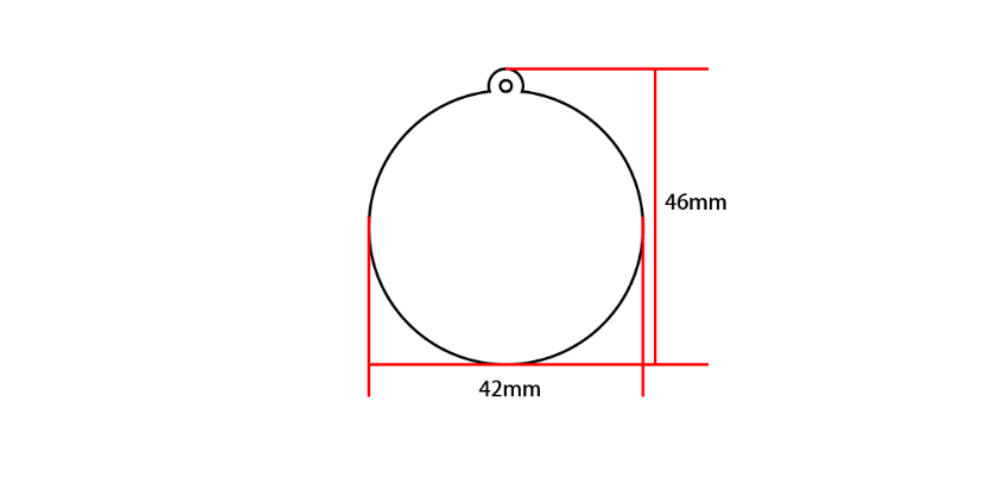

42*46mm | MIFARE Classic 1K,Ntag213, Ntag215, Ntag216,etc. | |

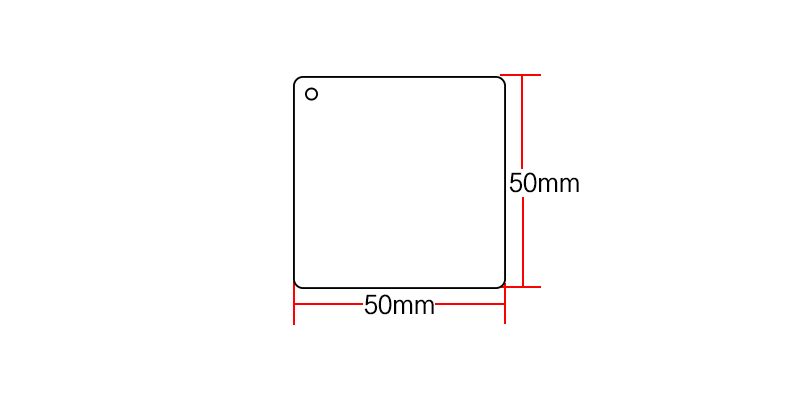

50*50mm | MIFARE Classic 1K,Ntag213, Ntag215, Ntag216,etc. |
Parameters
Item | Mifare 1K Epoxy Tag |
Material | PVC and Epoxy |
Chip | Mifare 1K |
Frequency | 13.56MHz |
Protocol | ISO14443A |
Color | Customizable |
Size | Custom |
Memory | 1024bytes |
Reading distance | 0-10cm |
Write Endurance | 100000 times |
Working Temperature | -25°C to 65°C |
Data Retention Time | 10 years |
Printing Options | Silk-screen printing, Laser Engraving, CMYK full color, Pantone, etc. |
Crafts Available | Logo or number printing, Bar code, QR code, etc. |
Samples | Free samples are available upon request |
