Mifare 1k KeyFob

As the most classic RFID chip, Mifare 1K can be encapsulated in diverse forms, widely used in various applications. Mifare 1K key fob is one of them, easy to carry, and low cost, very suitable for access control.

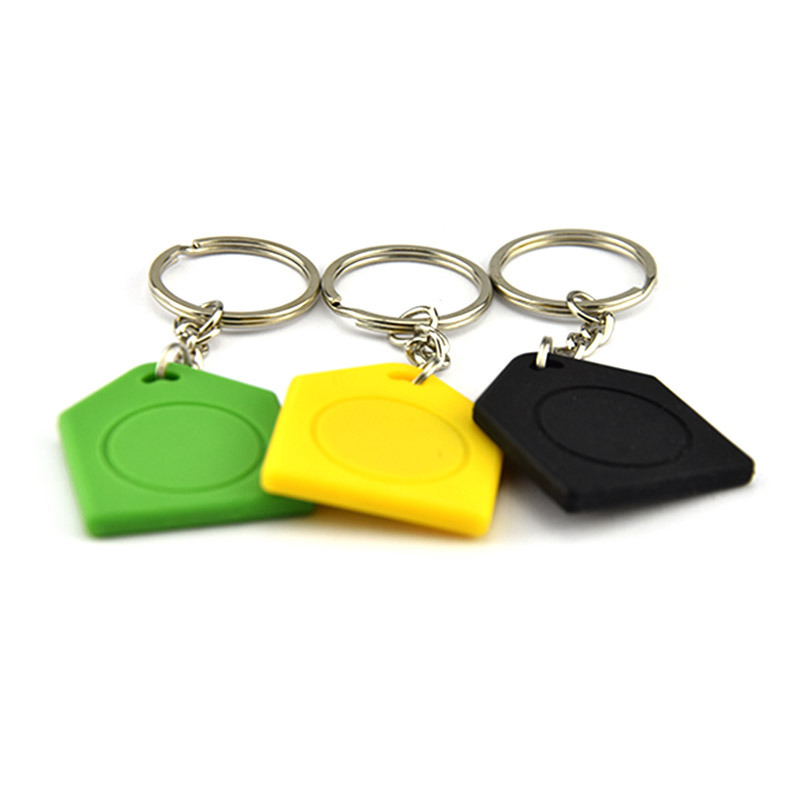

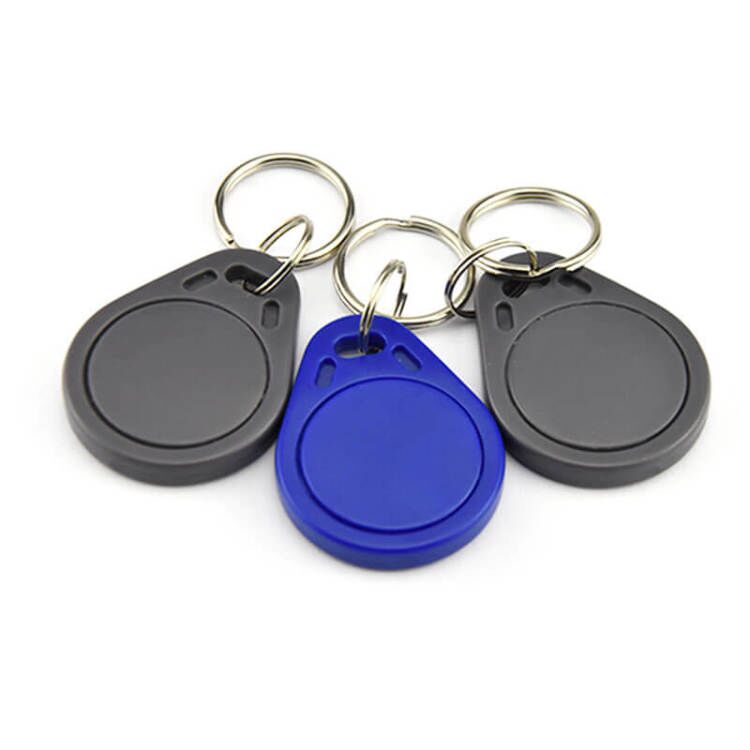

Xinyetong Mifare 1K key fobs come in a variety of colors, shapes, and materials that you can choose. The classic colors are red, black, blue, green, yellow, and gray, and the popular shapes are rectangular, square, and dripping. The common materials are ABS, PVC, epoxy, etc. And you can also customize it.

Ask For Price

FEATURES

  • Support for customized services
  • Durable and waterproof
  • Available with key chain, easy to carry
  • Contactless transmission of data and supply energy
  • Operating frequency of 13.56MHz
  • Data transfer of 106 Kbit/s
  • Data integrity of 16-bit CRC, parity, bit coding, bit counting
  • Typical ticketing transaction time of<100ms (including backup management)
  • Operating distance up to 100mm (depending on antenna geometry and reader configuration)

APPLICATIONS

  • Access control attendance
  • Mobile payments
  • In-store marketing
  • Library management
  • Campus card
  • Library Management
  • Parking lot management
  • Identity authentication
  • Hotel key card

COMMONLY USED SIZE

Here are some commonly used sizes of Xinyetong RFID key fobs as follows.

StyleSizeAvailable Chip

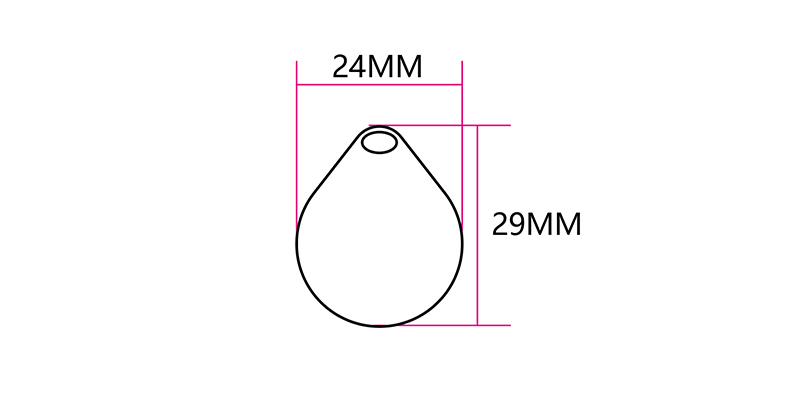

24*29 mmMifare 1k, Ntag213, Ntag215, Ntag216,etc.

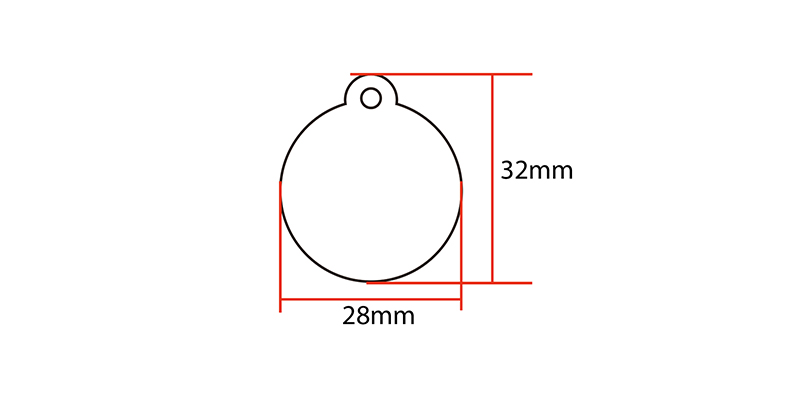

32*28 mmMifare 1k,Ntag213, Ntag215, Ntag216,etc.

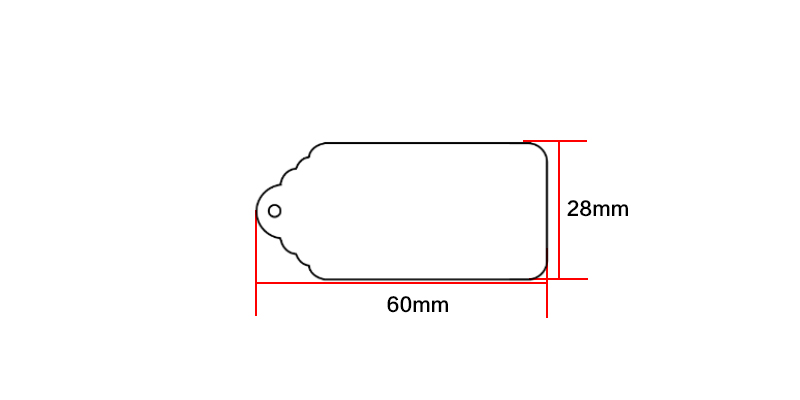

28*60mmMifare 1k, Ntag213, Ntag215, Ntag216,etc.

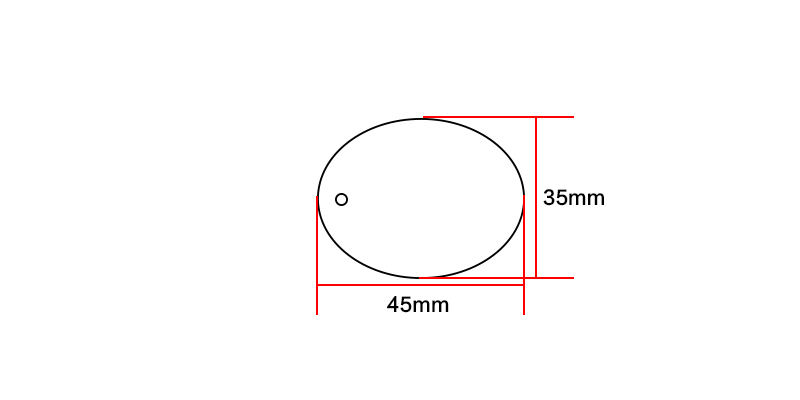

35*45mmMifare 1k, Ntag213, Ntag215, Ntag216,etc.

Parameters

Item Mifare 1K Key Fob
MaterialPVC, ABS, Epoxy, etc.
ChipMifare 1K
Frequency13.56MHz
ProtocolISO14443A
ColorCustomizable
SizeCustom
EepromIK
Reading distance0-10cm
Write Endurance100000 times
Working Temperature-25°C to 65°C
Data Retention Time10 years
Printing OptionsSilk-screen printing, Laser Engraving, CMYK full color, Pantone, etc.
Crafts AvailableLogo or number printing, Bar code, QR code, etc.
SamplesFree samples are available upon request
