RFID Laundry Tag For Hospital Hotel Clothes Management

RFID Laundry tag can help manage textiles, linen and clothing assets efficiently.

By combining the efficiency of real-time inventory management with the expanded scope and accuracy of revolutionary UHF tagging technology, customers will greatly improve the receipt, transportation and tracking of assets while maintaining low costs by improving workflow and efficiency.

Details
Specification
Download

Description

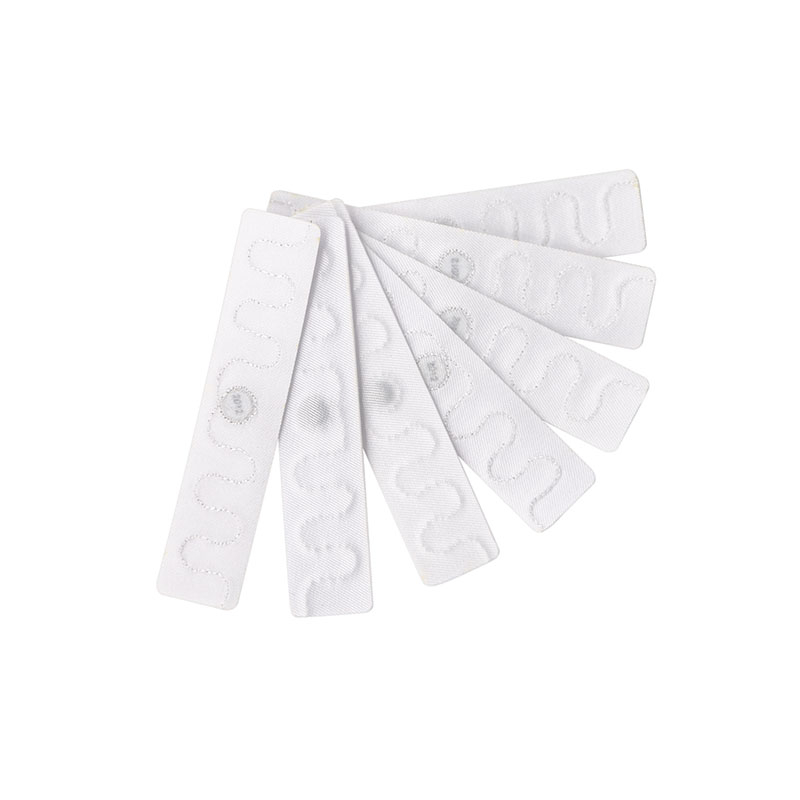

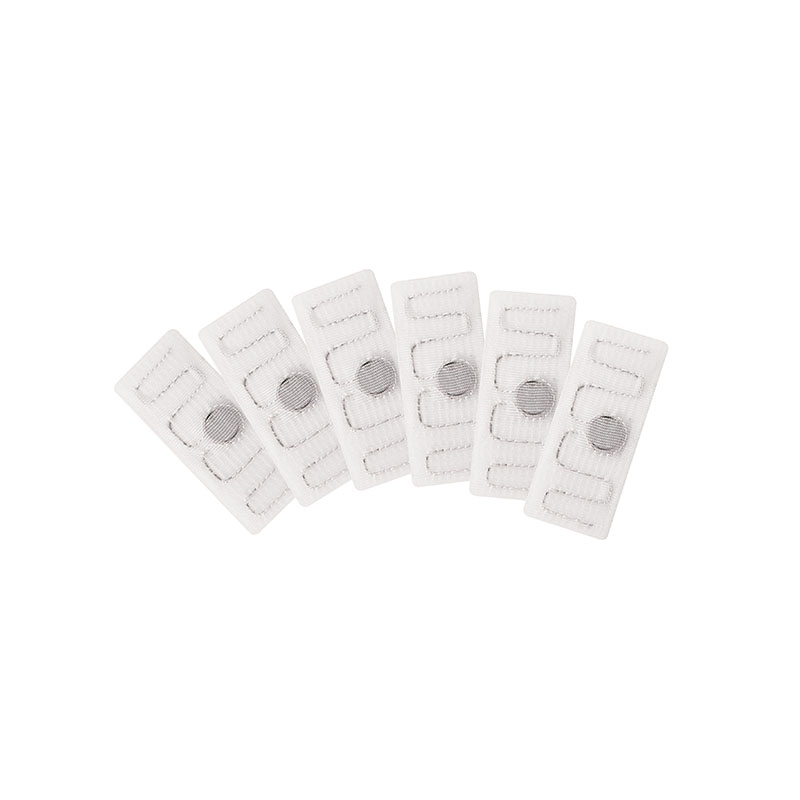

These RFID Laundry tags are made of polyester material and antenna design, made on the front, and have a reading range of up to 1-7 meters.

The industry’s thinnest, washable UHF RFID label is flexible, soft and sturdy, making it ideal for flat linen and clothing.

The design of the label and the super-rugged properties of the material are designed for long-term deployment, with approximately 200 washes, allowing the label to be reused in another linen product over the expected life cycle, thereby reducing the total cost of ownership.

FEATURES

Can be read in groups
Soft material
Resistant to high temperature washing
Industrial washing of not less than 200 times
Waterproof
High temperature resistance
Corrosion resistance
Pressure resistance

APPLICATIONS

Linen washing in hotels and guesthouses
Industrial washing
Medical clothing management
Management of railway linen washing

Parameters

Item	RFID Laundry Tag For Hospital Hotel Clothes Management
Material	High temperature resistant washing cloth
Chip	U Code 8/U Code 7/H3 etc.
Frequency	860-960MHz
Memory	EPC 96bits User 32bits
R/W	Read/ Write
Protocol	ISO/IEC 18000 6C
Color	White
Size	70mm * 15mm * 1.4mm/82mm17mm/60mm20mm
Reading distance	0-10m
Working Temperature	-25℃ to 65℃
Washing	130℃ (255℉) for 60 minutes
Pre-drying	180℃ (352℉) for 40 minutes
Ironing	200℃ (365℉) for 5 minutes
Sterilization treatment	150℃ (295℉) for 50 minutes
Dehydration pressure	60bars
MOQ	500pcs
