NTAG213 PPS Laundry tag

If you are looking for laundry tags, Xinyetong recommends the Ntag213 PPS laundry tag to you. This RFID laundry tag is encapsulated by PPS material and embedded Ntag213 chip, more stable, safe, and convenient.

Ntag213 PPS laundry tag has excellent RF performance in high temperature, high humidity, and high-frequency conditions. It is widely used in industrial laundry,chemical material tracking management, special electrical products, chemical devices management, automotive engine maintenance management, and other harsh environments.

Ask For Price

DESCRIPTION

At the earliest, RFID laundry tags were generally made of silicone material. However, the silicone laundry tags were prone to fall off and slow induction speed in the use process, while PPS laundry tags perfectly solved this problem. Thanks to PPS material is a kind of engineering plastic with the best heat resistance, PPS laundry tag features high-temperature resistance, chemical corrosion resistance, rubbing resistance, good insulation performance to withstand the harsh environment of the laundry process.

FEATURES

  • Anti-interference design
  • Near-field multi-label recognition
  • Waterproof & Good insulation performance
  • High-temperature resistance & Rubbing resistance
  • Pressure resistant & Chemical corrosion resistance
  • Recyclable for more than 200 times
  • Support for customization

COMMONLY USED SIZE

We offer customized services, and our card Inlay, come in various sizes, chips, shapes you can choose from. Here are some commonly used sizes as follows.

Available ShapeCommonly Used SizeAvailable Chip

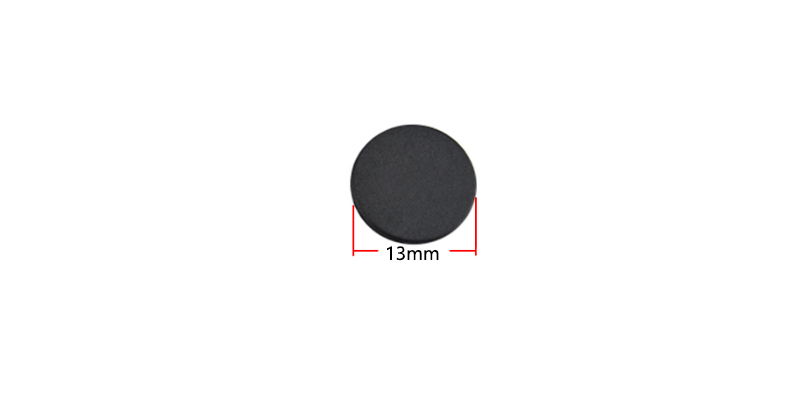

φ13mmNtag213, Ntag215, Ntag216

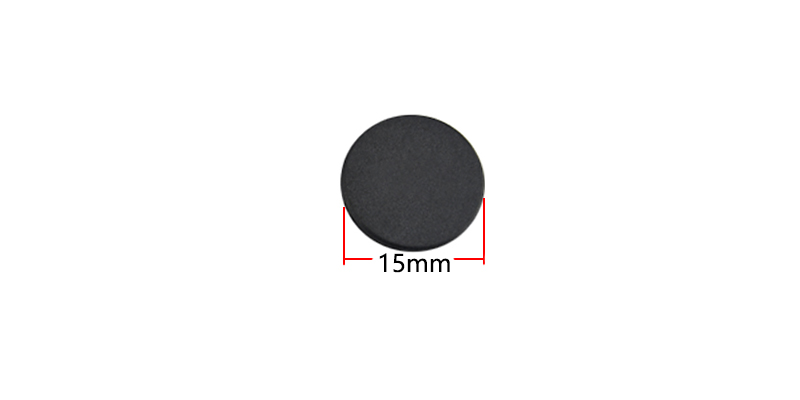

φ15mmNtag213, Ntag215, Ntag216

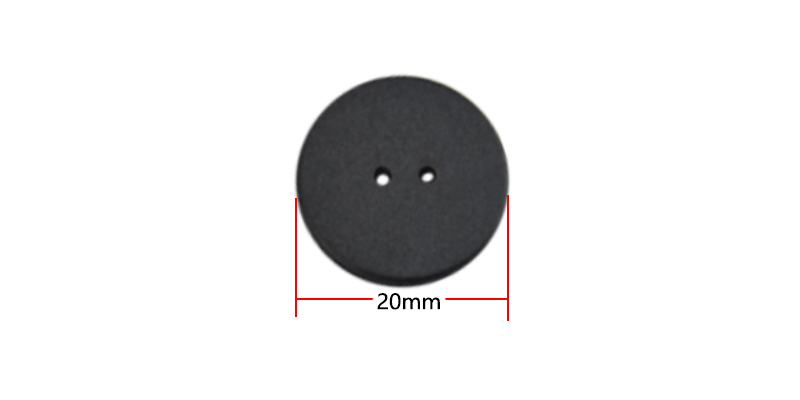

φ20mmNtag213, Ntag215, Ntag216

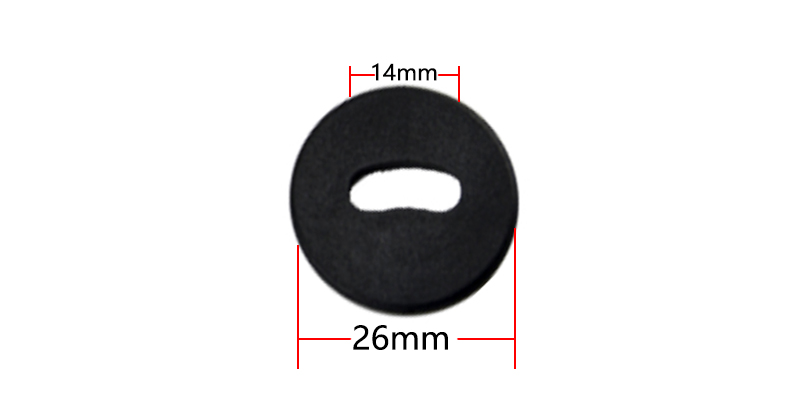

φ26mmNtag213, Ntag215, Ntag216

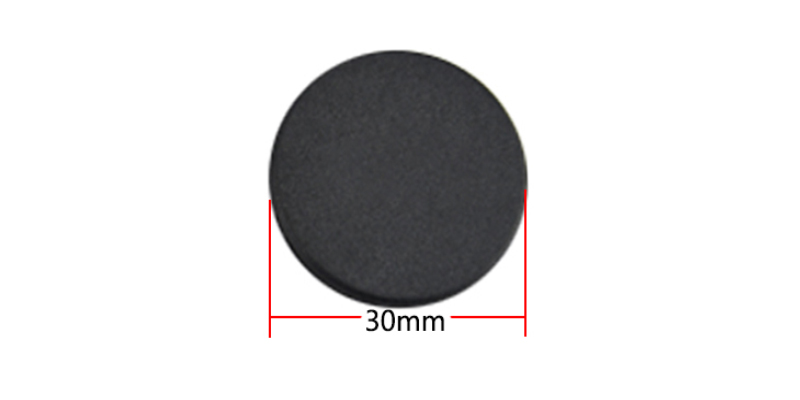

φ30mmNtag213, Ntag215, Ntag216

Parameters

ItemNTAG213 PPS Laundry tag
Material
PPS
ChipNTAG213
Frequency13.56MHz
ProtocolISO14443A
Colorblack
Sizeφ13mm, φ15mm, φ18mm, φ20mm, φ26mm, φ30mm, etc.
Thickness2.5mm or on demand
Washable timeMore than 200 times
Memory144 bytes
Reading distance0-10cm
Write Endurance100000 times
Working Temperature-30°C to 200°C
Data Retention Time10 years
SamplesFree samples are available upon request
