Why is it called a coin card? Because it likes a coin, both size and shape. The coin card is a new type of RFID card, generally made of PVC material. Ntag213 coin card is the coin card equipped with the Ntag213 chip, having all the features of Ntag213 chip, such as 32-bit password authentication, ASCII UID mirror, integrated originality signature, etc.
Xinyetong Ntag213 Coin Card has high quality and low prices. If you want to know more, welcome to contact us!
DESCRIPTION
Ntag213 coin card, one of NFC tags, is a perfect solution for property tracking, social interaction, warehouse management, payment control, etc. Ntag213 coin card has an adhesive 3M backing, and it can be installed on the pallet, the cartons, the machine, etc.
If you want to use it in a harsh environment, such as a warehouse or factory, Xinyetong Ntag213 Coin Card is optional with filling epoxy technics, making it completely waterproof and oil proof. If you want to install it on the metal surface, you can choose the one which has an anti-metal layer.
FEATURES
- A variety of sizes and materials are available
- Affordable & high quality
- Support customization
- Operating frequency of 13.56MHz
- 100% compatible with NFC-enabled devices
- Operating range up to 100mm (depending on various parameters)
- 144 bytes of user data
- 32-bit password authentication, better safety performance
- Integrated originality signature, providing a simple but powerful product authentication method.
COMMONLY USED SIZE
Xinyetong Ntag213 Coin Cards come in a variety of sizes, and here are some commonly used sizes as follows. If you need to customize other sizes, don’t hesitate, please contact us!
Available Shape | Commonly Used Size | Available Chip |

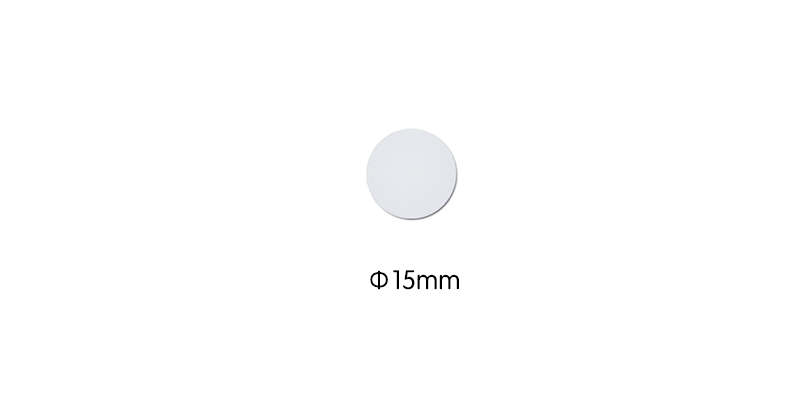

φ15mm | Ntag213, Ntag215, Ntag216 | |

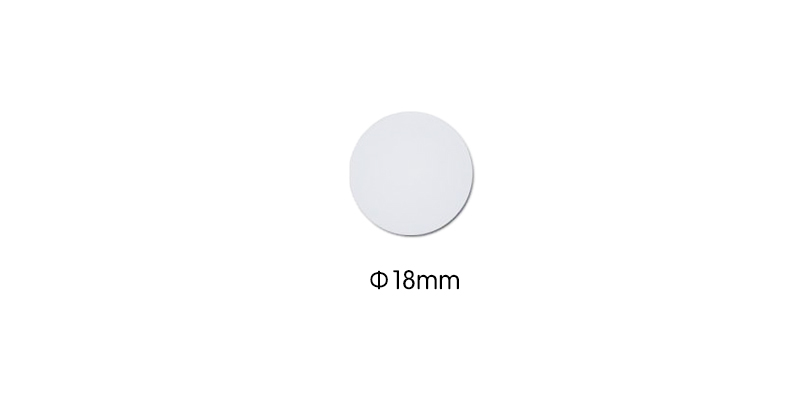

φ18mm | Ntag213, Ntag215, Ntag216 | |

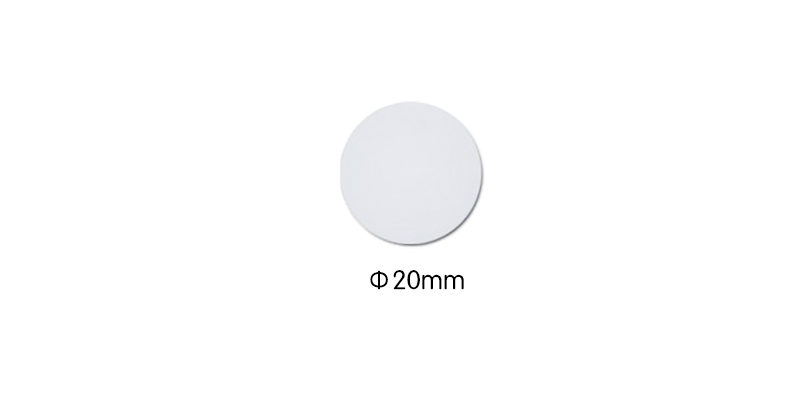

φ20mm | Ntag213, Ntag215, Ntag216 | |

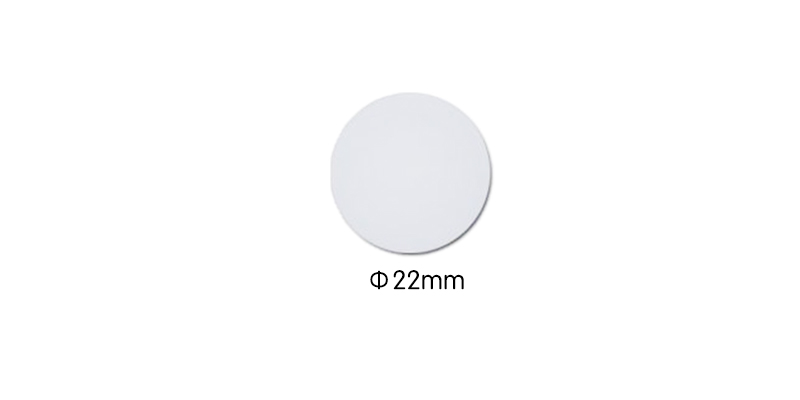

φ22mm | Ntag213, Ntag215, Ntag216 | |

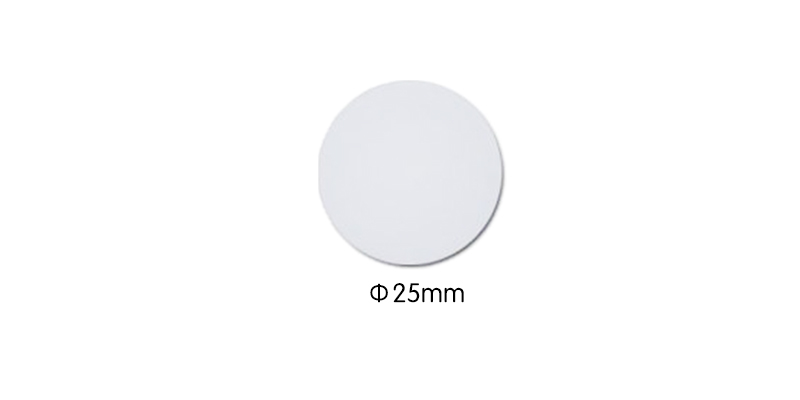

φ25mm | Ntag213, Ntag215, Ntag216 |
Parameters
Item | Ntag213 Coin Card |
Material | PVC |
Chip | NTAG213 |
Frequency | 13.56MHz |
Protocol | ISO14443A |
Color | White |
Size | φ15mm, φ18mm, φ20mm, φ22mm, φ25mm, etc. |
Memory | 144 bytes |
Reading distance | 0-10cm |
Write Endurance | 100000 times |
Working Temperature | -25°C to 65°C |
Data Retention Time | 10 years |
Samples | Free samples are available upon request |
