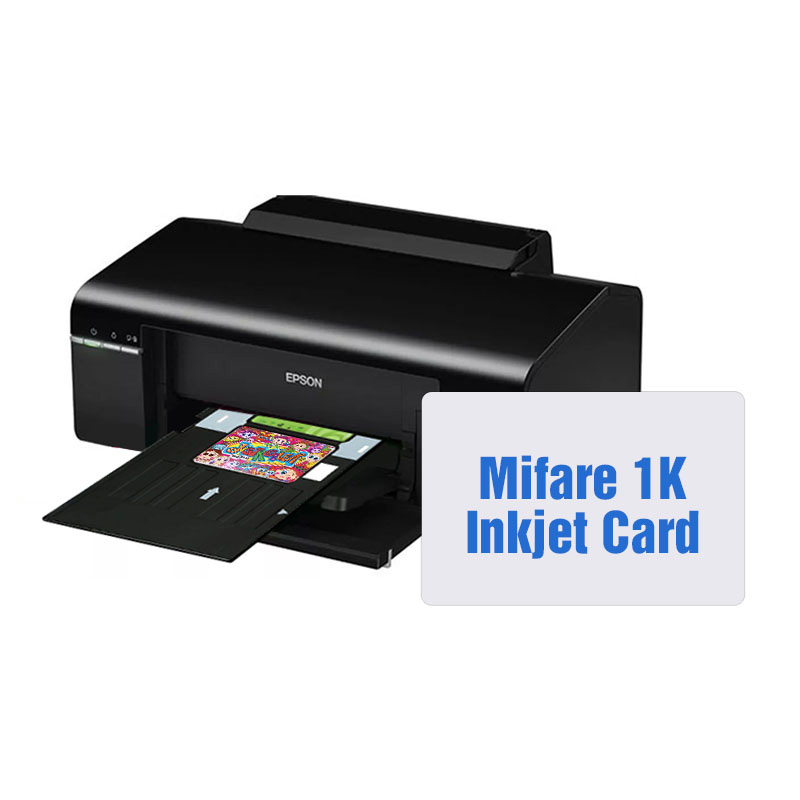

Printable Mifare 1K RFID Card, you can call it Mifare 1K Inkjet Card, is a special RFID card that you can print it by Epson or Canon Inkjet Printer. This Inkjet card uses Mifare 1K chip, working on 13.56MHz. With an Inkjet printer and Inkjet cards, you can make ID cards, campus cards, employee cards, and other cards by yourself, convenient and cost-effective.
Xinyetong can provide not only standard inkjet cards but also non-standard inkjet cards. If you are interested in this product, feel free to contact us.
FEATURES
- High-quality inkjet-coating, waterproof
- Double-side fast absorbing ink, quick-drying
- Directly printing by Epson or Canon printer
- Vivid color and high-resolution photo quality
- High glossy, flat and smooth, without burrs, no indentation
- Contactless transmission of data and supply energy
- Operating frequency of 13.56MHz
- Data transfer of 106 Kbit/s
- Data integrity of 16-bit CRC, parity, bit coding, bit counting
- Typical ticketing transaction time of<100ms (including backup management)
- Operating distance up to 100mm (depending on antenna geometry and reader configuration)
APPLICATIONS
- Access control attendance
- Library management
- Campus card
- Library Management
- Parking lot management
- Identity authentication
- Hotel key card
- Member management
- Exhibition centers
COMMONLY USED SIZE
Standard Printable Mifare 1K RFID Card is the same size as a credit card: CR 80(85.5*54mm), but you can customize it. Here are some non-standard Printable Inkjet cards as follows.
Style | Size | Available Chip |

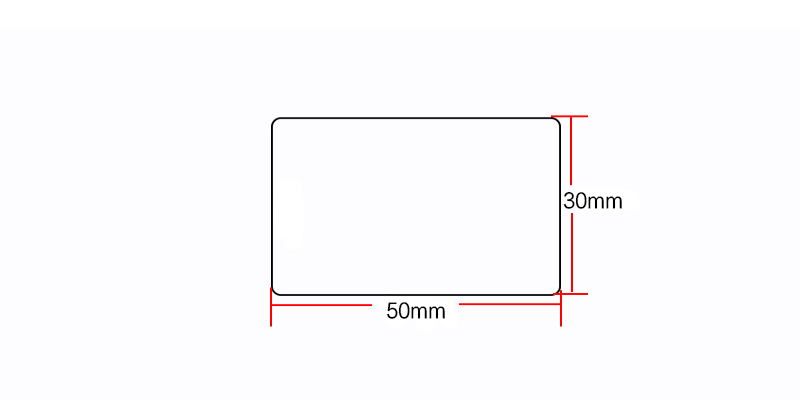

50*30 mm | Mifare 1k, Ntag213, Ntag215, Ntag216,etc. | |

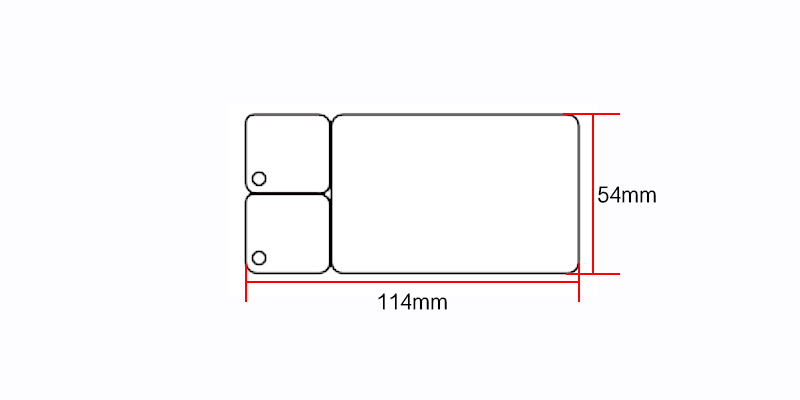

114*54 mm | Mifare 1k,Ntag213, Ntag215, Ntag216,etc. | |

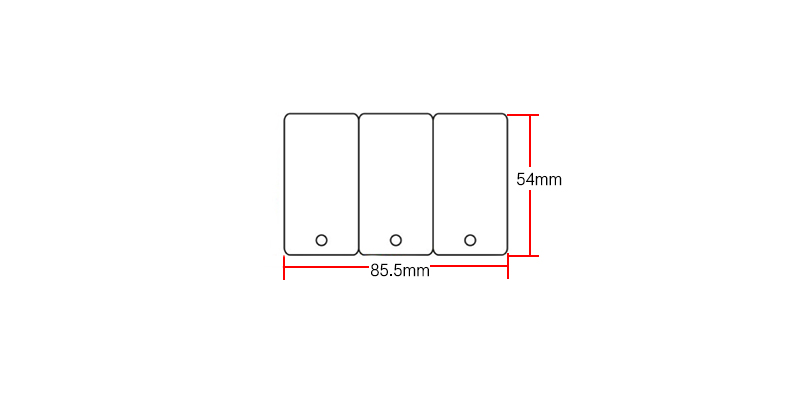

85.5*54mm | Mifare 1k, Ntag213, Ntag215, Ntag216,etc. | |

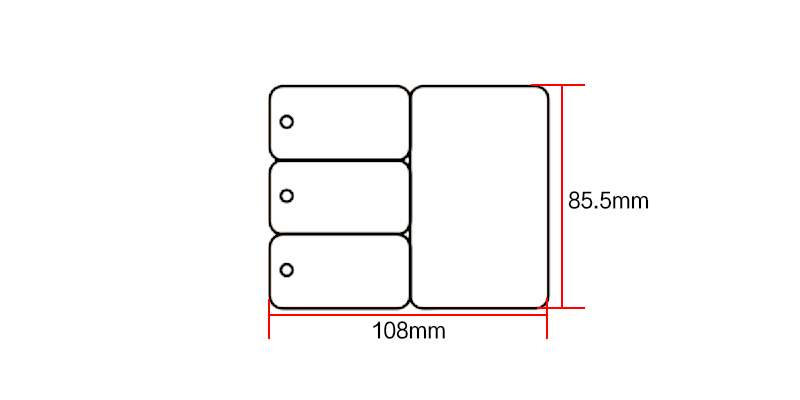

108*85.5mm | Mifare 1k, Ntag213, Ntag215, Ntag216,etc. |
Relevant articles
- 25 NFC Cards Reintroduce You to NFC Smart Cards
- 3 Types of Smart Cards in Access Control: Which better?
- What is RFID Smart Card?
- Why Hotels Use Key Cards Instead of Keys?
- The Most Complete Guide To Custom Smart Cards
- How to protect our RFID card? (Complete Guide)
- Mifare Cards VS Proximity Cards: What is the Difference?
Parameters
Item | Printable Mifare 1K RFID Card |
Material | PVC |
Chip | Mifare 1K |
Frequency | 13.56MHz |
Protocol | ISO14443A |
Color | Customizable |
Size | CR80 (85.5*54mm) or custom |
Eeprom | IK |
Reading distance | 0-10cm |
Write Endurance | 100000 times |
Working Temperature | -25°C to 65°C |
Data Retention Time | 10 years |
Printing Options | Silk-screen printing, Laser Engraving, CMYK full color, Pantone, etc. |
Crafts Available | Logo or number printing, Bar code, QR code, etc. |
Samples | Free samples are available upon request |
