ABS RFID Pallet Tag with Two Installation Methods

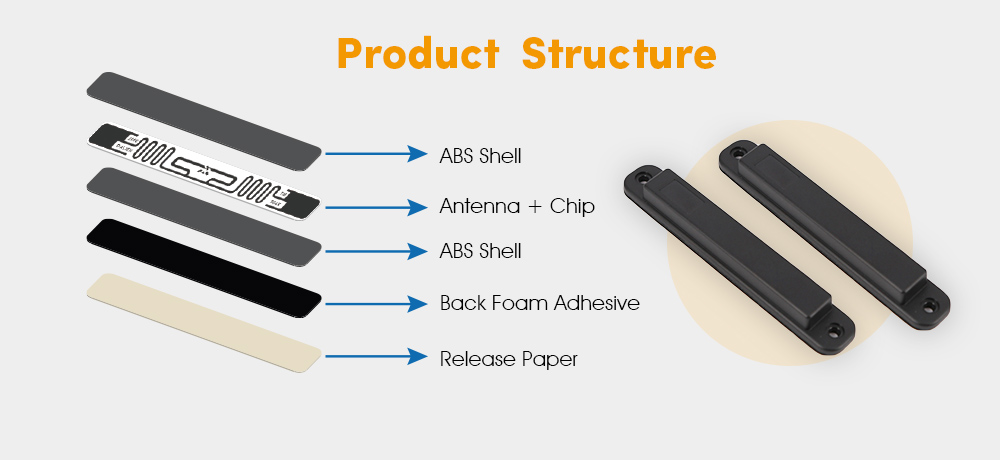

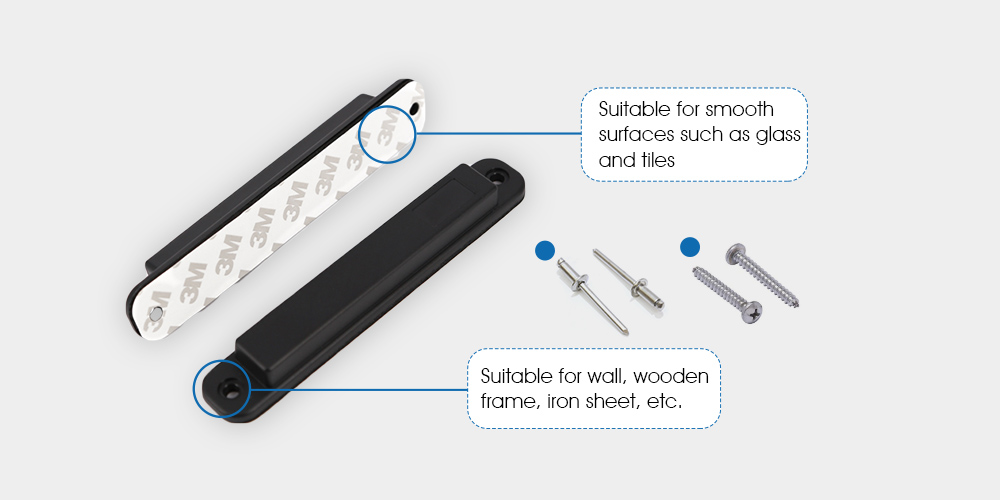

This ABS Pallet Tag is one of the anti-metal tags with a special design that has two installation methods. The 3M adhesive layer makes it can be used on smooth surfaces, such as metal, glass. And the two-hole design enables it to install on wooden pallets.

If you want this ABS anti-metal Tag to be powerful, you can choose an RFID chip with excellent performance embedded in it. In Xinyetong, there are many options for RFID chips. If you are not sure what chips to use, feel free to contact us.


Ask For Price

FEATURES

  • Two installation methods, suitable for more applications
  • HF chips or UHF chips are available
  • Anti-collision communication protocol
  • High-temperature resistance & Corrosion resistance
  • Waterproof and shockproof
  • Strong impact resistance
  • Support silk-print, including text, pattern, logo, etc.

APPLICATIONS

  • Warehouse shelves and pallets management
  • IT case management
  • Middle-sized and large metal container management
  • Electrical box and electrical facilities management
  • Indoor & Outdoor Metal office facilities management
  • Metal container management
  • Vehicle management and tracking
  • Other metal applications

Parameters

ItemABS RFID Pallet Tag
MaterialABS
ChipHF chips or UHF chips (depend on applications)
Frequency13.56 MHz, 860~960 MHz
Eepromdepend on chips
Size13 – 70mm/ customized
Reading distance0-10m
Write Endurance100000 times
Working Temperature-25°C to 65°C
Data Retention Time10 years
SamplesFree samples are available upon request
