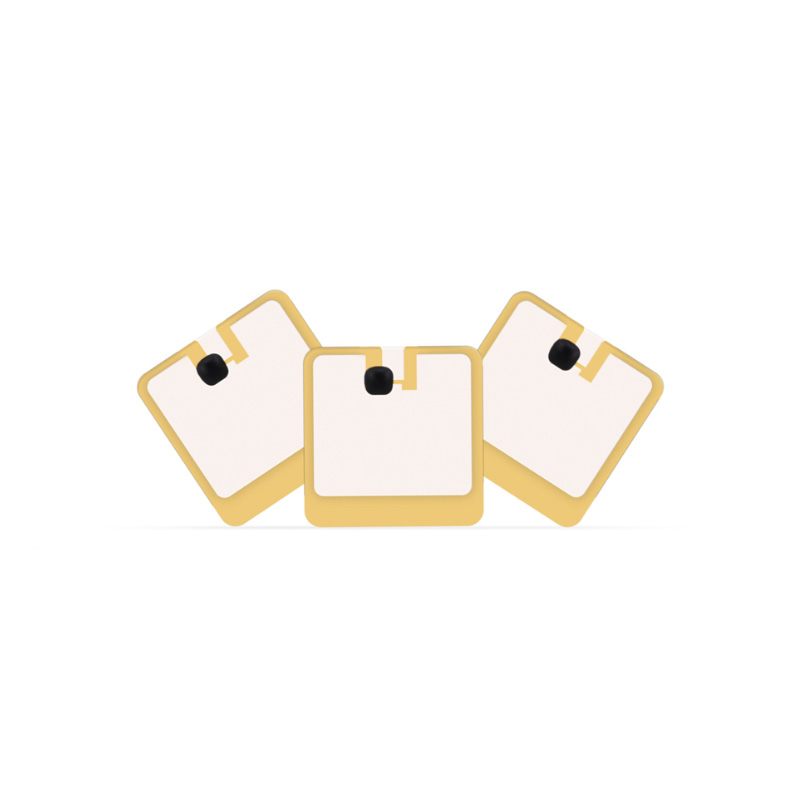

13*13mm UHF Ceramic Small RFID Tag

    • If you are looking for a small RFID tag that can work well on the metal surface, the Ceramic Small RFID Tag is a good choice. This Anti-metal RFID tag is made of ceramic material and usually works on 860~960MHz. It has a 3M adhesive layer that you can attach it to any object.

    This small RFID tag features high performance, fragile, and anti-transfer. Its size is as small as 13*13 mm. It can be used as a car windshield tag. Also, it fits for logistics management, metal asset management, medical equipment management, etc.

    Ask For Price

    FEATURES

    • Operating frequency: 860~960MHz
    • High-temperature resistance, fragile, and anti-transfer
    • Long reading distance: up to 10 meters
    • There is an anti-metal layer, which will not be disturbed by metal
    • Small size, suitable for installation on small objects
    • Two standards: European standard and American standard
    • Support customization services

    APPLICATIONS

    • Logistics and warehousing management
    • Intelligent parking lot management
    • Production line management
    • Vehicle Tracking and management
    • Product anti-counterfeiting detection
    • Medical equipment management
    • Metal asset management
    • Other applications requiring work on metal surfaces

    AVAILABLE CHIPS

    Chip NameProtocolUser MemoryFrequency
    Alien H3ISO18000-6C512 bit860-960MHz
    Impinj M4QTISO 18000–63 and EPCglobal Gen2v2 compliant512 bit860-960MHz
    M4EISO 18000–63 and EPCglobal Gen2v2 compliant128 bit860-960MHz
    M4DISO 18000–63 and EPCglobal Gen2v2 compliant32 bit860-960MHz

    Parameters

    ItemUHF Ceramic Small RFID Tag
    Material Ceramic material
    ChipAlien H3
    Frequency860-960 MHz
    Eeprom96bit EPC,512bit User
    R/WRead/ Write
    ProtocolISO 18000 6C
    Colorblack
    Size13*13*3mm
    Reading distance0-10cm
    Write Endurance100000 times
    Working Temperature-25°C to 65°C
    Preservation temperature-40°C to 120°C
    Product weight10g/pcs
    Installation mode3M300LSE back glue, strong glue
    SamplesFree samples are available upon request
