The Card inlay is a very important component of RFID smart cards, which directly affects the performance of the card. Therefore, you are better to choose a reliable supplier.

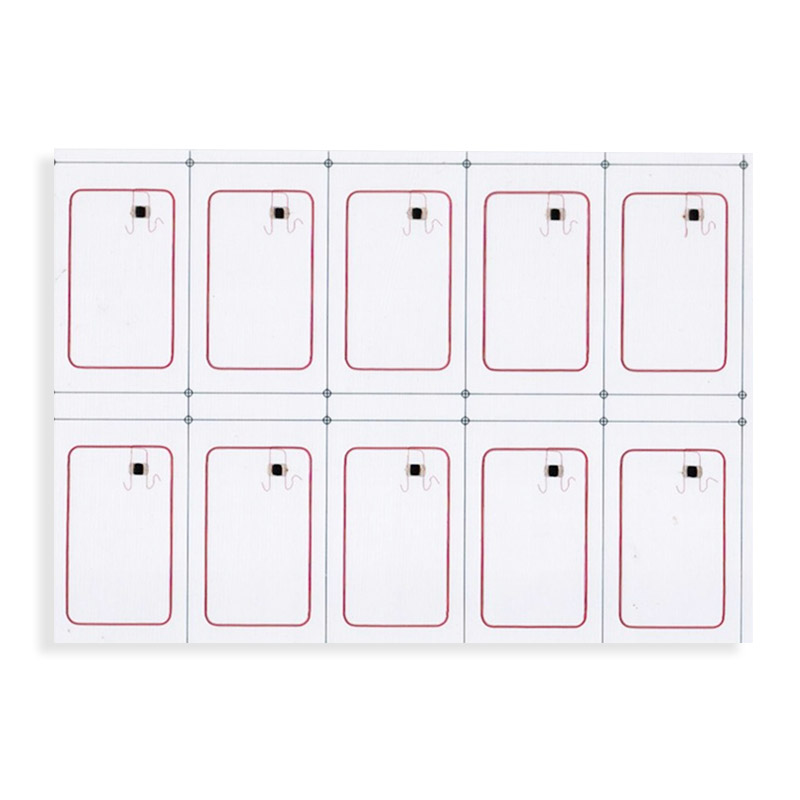

Card Inlay, an indispensable part of the RFID card, is essentially a semi-finished product. The Mifare 1k Card Inlay has the full features of the Mifare 1k, working on 13.56MHz, which is widely used in various RFID smart cards.
Xinyetong has advanced laminating equipment, using ultrasonic automatic touch welding technology, can accurately control the thermal cooling humidity, as well as laminating time, to ensure the stability and effectiveness of antenna and chip.
We offer customized services, and our card Inlay, come in various sizes, chips, shapes you can choose from. Here are some commonly used sizes as follows.
| Available Shape | Commonly Used Size | Available Chip |
 | 4×5 | Mifare 1k, Fudan F08 |
 | 2×5 | Mifare 1k, Fudan F08 |
 | 3×7 | Mifare 1k, Fudan F08 |
 | 3×8 | Mifare 1k, Fudan F08 |
| Item | Mifare 1k RFID Prelam |
| Chip | Mifare 1k |
| Frequency | 13.56MHz |
| Protocol | ISO14443A |
| Size | 18*18mm, 30*30.5mm, 35*35mm, 42*42mm, 45*18mm,etc. |
| Memory | 1024 bytes |
| Reading distance | 0-10cm |
| Write Endurance | 100000 times |
| Working Temperature | -25–65℃ |
| Data Retention Time | 10 years |
| Printing Options | Silk-screen printing, Laser Engraving, CMYK full color, Pantone, etc. |
| Crafts Available | Logo or number printing, Bar code, QR code, etc. |
| Samples | Free samples are available upon request |
