Mifare 1k Inlay

What is an inlay? The inlay is a term specific to the RFID industry. It is a semi-finished product, which can be encapsulated into different types of RFID tags. According to whether it contains back glue, Inlay is divided into Dry Inlay and Wet Inlay. RFID inlay supports a variety of chips, and the Mifare 1k Inlay is the one with the Mifare classic 1k chip.

Xinyetong offers all kinds of RFID inlay and supports customization and wholesale, high quality & low price. If you want to learn more about it, feel free to contact us.

FEATURES

  • Contactless transmission of data and supply energy
  • Operating frequency of 13.56MHz
  • Data transfer of 106 Kbit/s
  • Data integrity of 16-bit CRC, parity, bit coding, bit counting
  • Typical ticketing transaction time of<100ms (including backup management)
  • Operating distance up to 100mm (depending on antenna geometry and reader configuration)
  • Various sizes and chips are available

APPLICATIONS

  • Retail Environment
  • Social Media
  • Games & Toys
  • Media & Ads
  • Electronics Pairing
  • Product Authentication
  • Library Management
  • Application in a variety of RFID tags, RFID wristbands, RFID cards, etc.

COMMONLY USED SIZE

Xinyetong RFID inlay comes in various sizes. Here are some commonly used sizes of RFID inlay as follows.

StyleSizeAvailable Chip

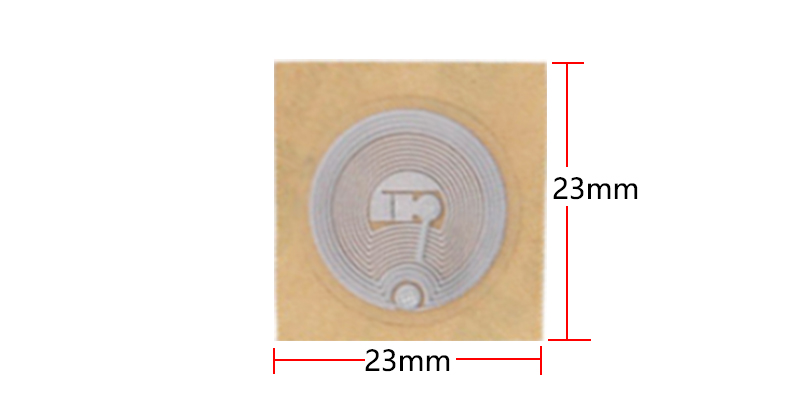

23*23 mmMifare 1k, Ntag213, Ntag215, Ntag216,etc.

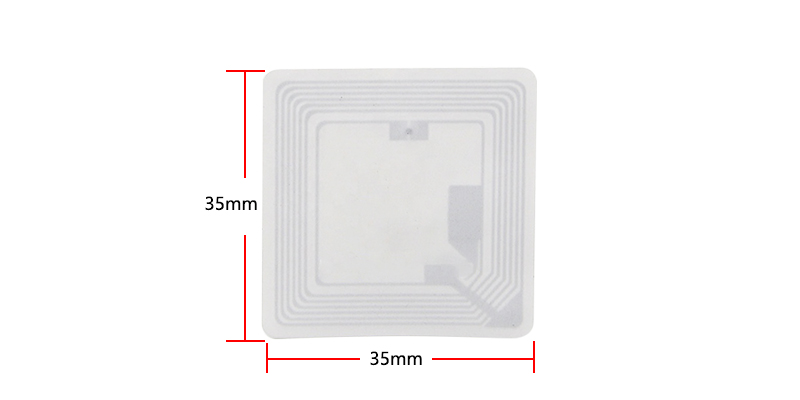

35*35 mmMifare 1k,Ntag213, Ntag215, Ntag216,etc.

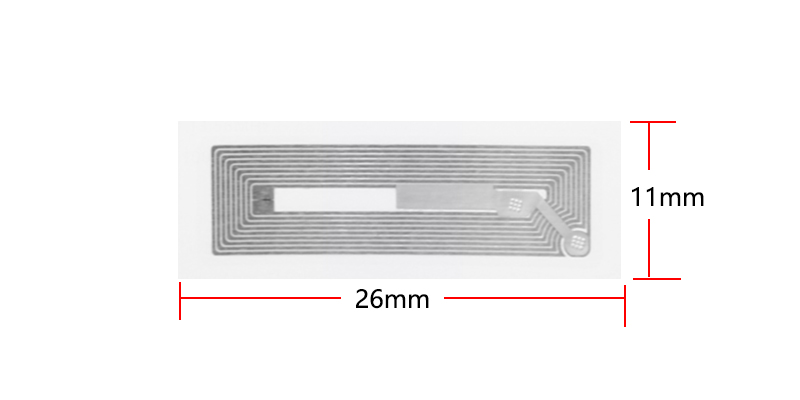

11*26mmMifare 1k, Ntag213, Ntag215, Ntag216,etc.

Parameters

Item Mifare 1K Inlay
Material PVC、PET、Coated paper
Chip Mifare 1K
Frequency 13.56MHz
Protocol ISO14443A
Color Customizable
Size Custom
Eeprom IK
Reading distance 0-10cm
Write Endurance 100000 times
Working Temperature -25°C to 65°C
Data Retention Time 10 years
Printing Options Silk-screen printing, Laser Engraving, CMYK full color, Pantone, etc.
Crafts Available Logo or number printing, Bar code, QR code, etc.
Samples Free samples are available upon request
