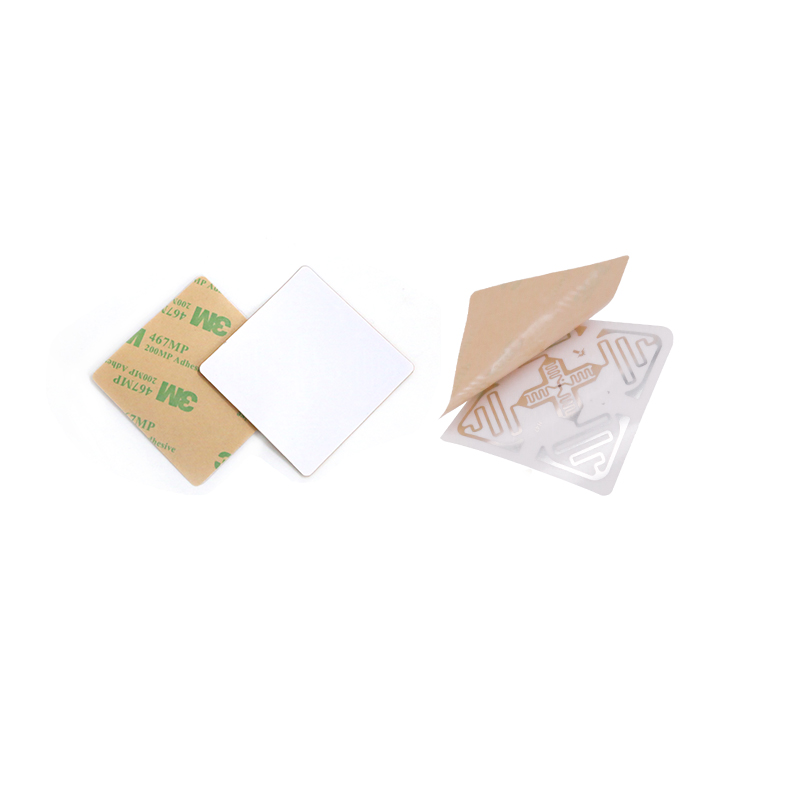

RFID Adhesive Label has a special design with an adhesive layer that can be easy to peel off and stick on the target object. You can choose LF chips, HF chips, or UHF chips to embed in it according to the applications.
RFID Adhesive Tags widely apply to asset management, library management, jewelry tracking, and so on. Good adhesive labels have good stickiness and are not easy to fall off. Of course, they must have good RF performance.
Xinyetong RFID Adhesive Labels not only have high quality but also they have good prices. There are manifold RFID stickers, and also we can customize them for you.
FEATURES
- Good viscosity, not easy to fall off
- High quality and low cost
- Manifold sizes, chips, shapes, materials are available
- Support customization service and wholesale
- Widely applications: Asset Management, Library Management, Inventory Management, Car windshield labels, Jewelry forgery prevention, Logistics Tracking, and so on.
AVAILABLE MATERIALS
- Coated Paper: Low cost, easy to print on.
- PET: Waterproof, heatproof, environmental protection.
- PVC: Waterproof, corrosion resistance, high-temperature resistance.
- Normal Double-sided adhesive: Robust, widely used, and cheaper than 3M Glue.
- 3M Glue: Higher cost but strong viscosity, good temperature tolerance; anti-corrosion.
- Electrostatic adhesive: Electrostatic prevention, high-temperature resistance, strong water resistance
AVAILABLE NFC CHIPS
Chip Name | Memory | Data Retention | Frequency | RF Interface |
TK 4100 | 64 bits | 10 years | 125 kHz | / |
EM 4200 | 128 bits | 10 years | 125 kHz | / |
EM 4305 | 512 bits | 10 years | 125 kHz | / |
ICODE SLIX | 1024 Byte | 10 years | 13.56 MHz | ISO 15693 |
MIFARE Classic 1K | 1K byte | 10 years | 13.56 MHz | ISO 14443 A |
MIFARE Classic 4K | 4K byte | 10 years | 13.56 MHz | ISO 14443 A |
Ultralight EV1 | 64/128 byte | 10 years | 13.56 MHz | ISO 14443 A |
Ultralight C | 192 byte | 10 years | 13.56 MHz | ISO 14443 A |
Ntag213 | 144 byte | 10 years | 13.56 MHz | ISO 14443 A |
Ntag215 | 504 byte | 10 years | 13.56 MHz | ISO 14443 A |
Ntag216 | 888 byte | 10 years | 13.56 MHz | ISO 14443 A |
Alien H3 | 512 bits | 10 years | 860~960 MHz | ISO18000-6C |
Impinj Monza 4 | 96 bits | 10 years | 860~960 MHz | ISO18000-6C |
UCODE G2iL | 128 bits | 10 years | 860~960 MHz | EPCglobal Class1Gen2 |
Parameters
Item | RFID Adhesive Labels |
Material | Paper, Epoxy, etc |
Chip | Ntag213, Ntag216, Ntag215, TOPAZ512, F08, etc |
Frequency | 125kHz, 13.56MHz or 860~960MHz |
Color | Custom |
Size | φ15 mm, φ20 mm, φ21 mm, φ22 mm, φ25 mm, φ 27 mm, φ30 mm, φ33 mm, φ 34 mm, 25X38 mm, 26X11 mm, 52X15 mm, 22X37 mm, 22.5X38mm, 40X40mm, 45X45mm, 45X76mm, 40X71mm, Or custom |
Memory | Depend on chip |
Reading distance | Depend on chip |
Write Endurance | 100000 times |
Working Temperature | -30°C to 200°C |
Data Retention Time | 10 years |
Samples | Free samples are available upon request |
Packaging | 1000pcs / 2000pcs / 2500pcs in on roll |
