Mifare 1k NFC Tag

Mifare 1k NFC Tag
Mifare 1k NFC Tag
Mifare 1k NFC Tag
  • Mifare 1k NFC Tag
  • Mifare 1k NFC Tag
  • Mifare 1k NFC Tag

    • NFC tags integrate card reader and transponder into the same chip to enable close – range message interaction. They can satisfy information exchange, content access, service exchange between any two wireless devices, and makes it much easier. Mifare 1k NFC tag is the most classic NFC tag, which is equipped with the classic NFC chip Mifare 1k.

    Xinyetong offers all kinds of NFC tags, including the Mifare 1K NFC tag. Here, you can find any material, any chip, any size NFC tag, and high quality & low price.

    Ask For Price

    FEATURES

    • Waterproof, acid-proof, alkali-proof, and collision-resistant
    • Contactless transmission of data and supply energy
    • Operating frequency of 13.56MHz
    • Data transfer of 106 Kbit/s
    • Data integrity of 16-bit CRC, parity, bit coding, bit counting
    • Typical ticketing transaction time of<100ms (including backup management)
    • Operating distance up to 100mm (depending on antenna geometry and reader configuration)
    • Various styles and colors are available

    APPLICATIONS

    • Mobile interaction
    • Warehouse assets management
    • Medical device management
    • Consumer electronics
    • Vehicle Management
    • Indoor Equipment Management
    • Application of other metal surfaces

    COMMONLY USED SIZE

    Xinyetong NFC Anti-metal tags come in various sizes. Here are some commonly used sizes of NFC anti-metal tags as follows.

    StyleSizeAvailable Chip

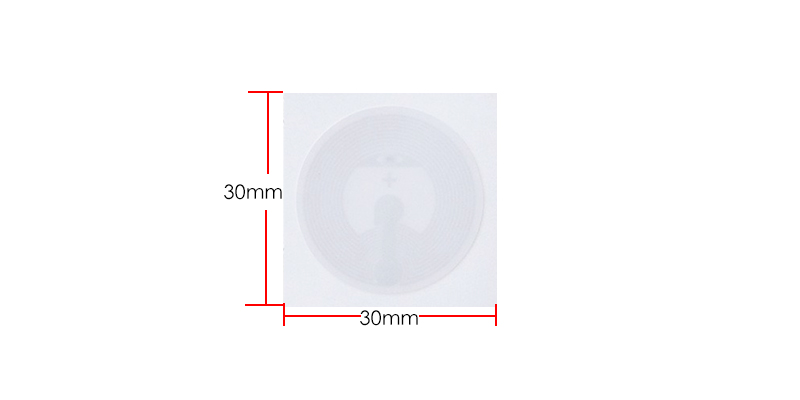

    30*30 mmMifare 1k, Ntag213, Ntag215, Ntag216,etc.

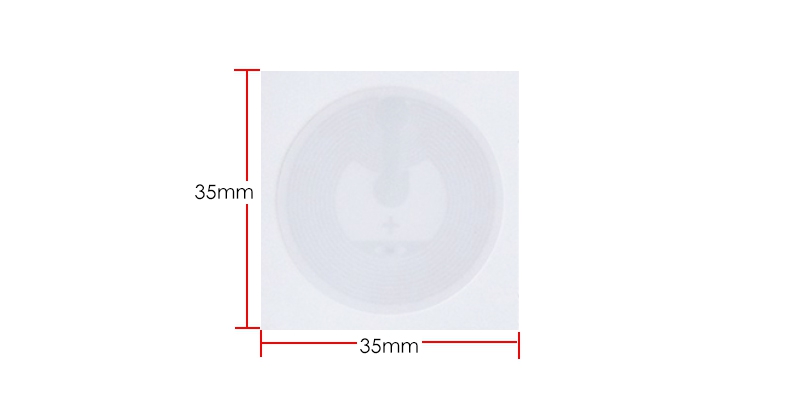

    35*35 mmMifare 1k,Ntag213, Ntag215, Ntag216,etc.

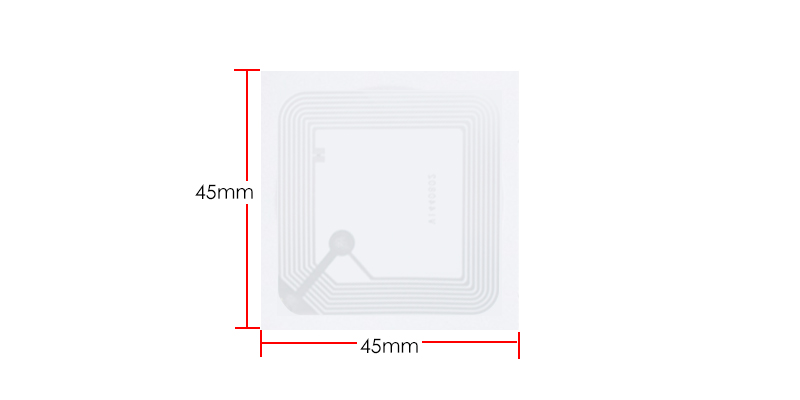

    45*45mmMifare 1k, Ntag213, Ntag215, Ntag216,etc.

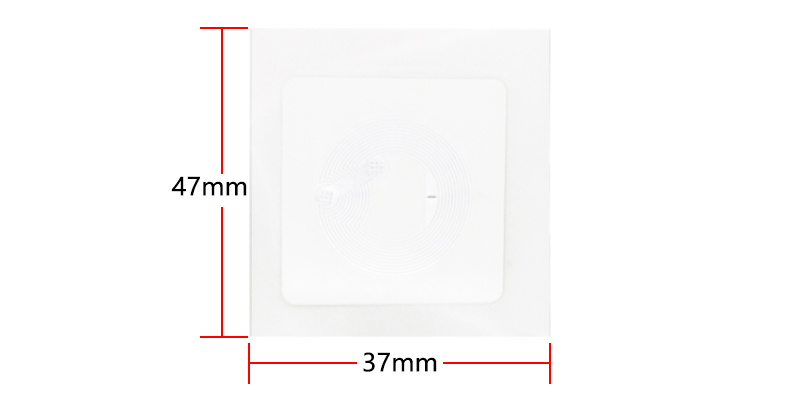

    37*47mmMifare 1k, Ntag213, Ntag215, Ntag216,etc.
    Learn More

    Parameters

    Item Mifare 1K NFC Tag
    MaterialPVC、PET、Coated paper、Microwave absorbing material
    ChipMifare 1K
    Frequency13.56MHz
    ProtocolISO14443A
    ColorCustomizable
    SizeCustom
    EepromIK
    Reading distance0-10cm
    Write Endurance100000 times
    Working Temperature-25°C to 65°C
    Data Retention Time10 years
    Printing OptionsSilk-screen printing, Laser Engraving, CMYK full color, Pantone, etc.
    Crafts AvailableLogo or number printing, Bar code, QR code, etc.
    SamplesFree samples are available upon request
