Most mobile phones have an NFC application and make today life smarter and easier. we will use NFC function to payment, identify, date exchange, information share. NFC stickers can affix on the phone backside or anywhere if you would like.
Customers can rewrite URL, text, number into NFC sticker which embedded NFC chip inside. Generally, they’re 13.56mhz and ISO 14443A protocol. we will choose them to depend upon their user memory.
The normal size is 20mm diameter, 25mm diameter, 35mm diameter or customized. One side is paper/PVC/PET or other material, the other side is anti-metal sticker.
The anti-metal NFC tags are used quite widely, like fridges or the mobile, can use anywhere surface, Anti-metal NFC tags can do soft or hard, paper/soft PVC are going to be soft, hard PVC, PET, ABS is going to be hard.
The anti-metal NFC tags with short reading range 3-10cm to guard your information, operated at 13.56mhz on ISO 14443A protocol, anti-metal NFC tags can write information, like URL, TEXT, website, telephone number, NDEF etc.
FEATURES
- Operating frequency of 13.56MHz
- Waterproof, acid-proof, alkali-proof, and collision-resistant
- Can be erased and reprogrammed repeatedly
- 100% compatible with NFC-enabled devices
- 504 bytes of user memory, 540 bytes of total memory
- 32-bit password authentication to protect the data stored in the tag
- Integrated originality signature to make anti-counterfeiting simple and efficient
- Manufacturer programmed 7-byte UID for each device
- Pre-programmed capability container with one-time programmable bits
- Field programmable read-only locking function
- UID ASCII mirror for automatic serialization of NDEF messages
Parameters

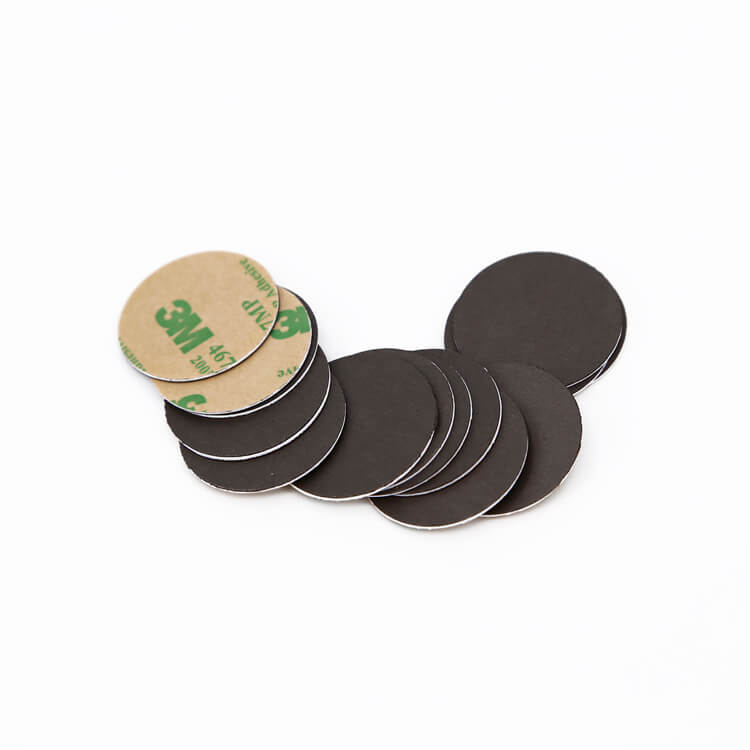

| Item | 13.56MHz 3M Adhesive Ntag216 Anti-metal NFC Tags |
|---|---|
| Material | PVC/PET/Coated paper/Microwave absorbing material |
| Chip | NTAG216 |
| Frequency | 13.56MHz |
| Eeprom | 888 bytes |
| R/W | Read/ Write |
| Protocol | ISO 14443A |
| Color | Customizable |
| Size | Dia 20mm/25mm/30mm/35mm etc. |
| Reading distance | 0-10cm |
| Write Endurance | 100000 times |
| Working Temperature | -25¡ãC to 65¡ãC |
| Data Retention Time | 10 years |
| Printing Options | Silk-screen printing, Laser Engraving, CMYK full color, Pantone, etc. |
| Crafts Available | Logo or number printing, Bar code, QR code, etc. |
| Samples | Free samples are available upon request |
| MOQ | 500pcs |
