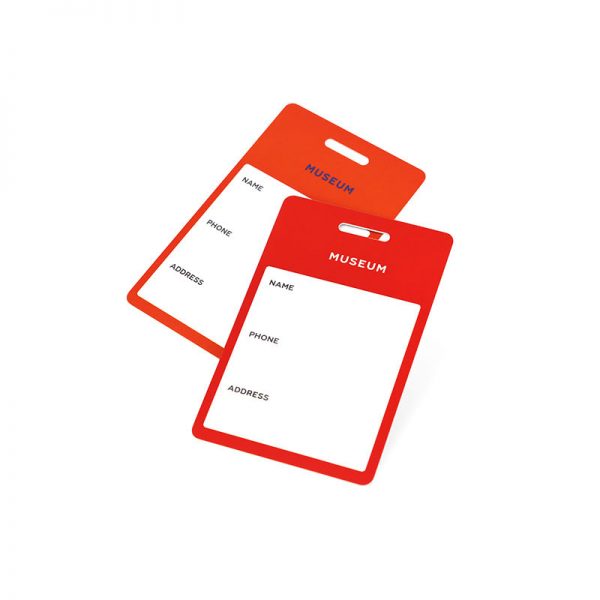

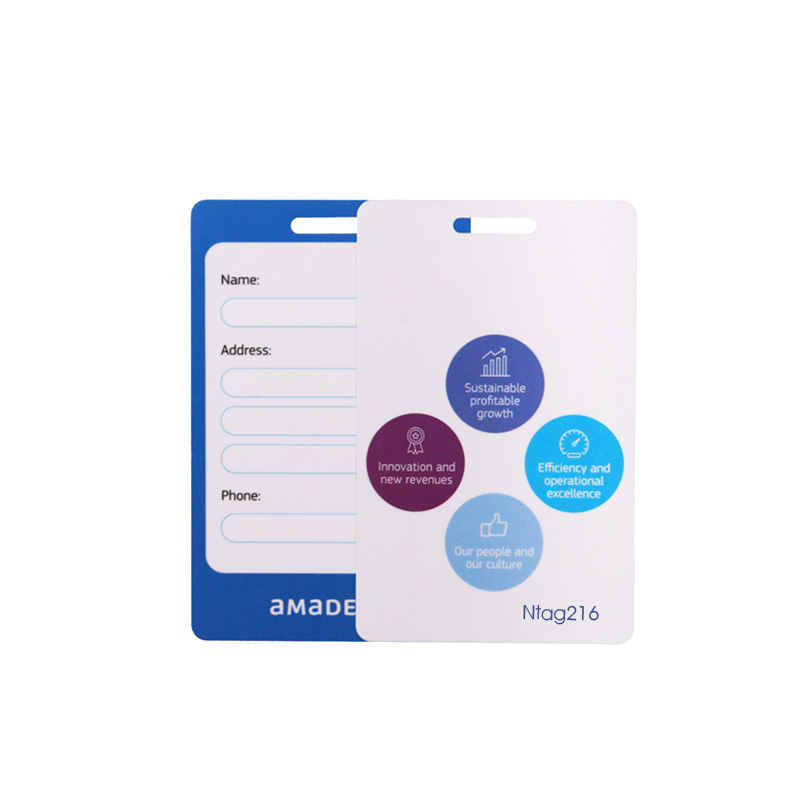

Ntag216 Chip Card

Ntag216 chip card is equipped with the Ntag216 chip, powerful and convenient. Among the Ntag21X series, the Ntag216 chip has the largest capacity. There are 888 bytes of user-programmable read/write memory.

This NFC card is compliant to NFC Forum Type 2 Tag and ISO/IEC 14443 Type A specifications. It suits Out-of-home smart advertisement, SoLoMo applications, product authentication, mobile companion tags, etc.

Xinyetong NFC cards come in various chips, crafts, sizes, etc. And you can customize it. Feel free to contact us, you’ll get the high-quality NFC cards at a good price.


Ask For Price

FEATURES

RF INTERFACE

  • Contactless transmission of data and supply energy
  • Operating distance up to 100mm (depending on various parameters as e.g. field strength and antenna geometry)
  • Operating frequency: 13.56 MHz
  • Fast data transfer of 106 kbit/s
  • High data integrity of16-bit CRC, parity, bit coding, bit counting
  • 7-byte serial number (cascade level 2 according to ISO/IEC 14443-3)
  • UID ASCII mirror for automatic adding the NFC counter value to the NDEF message
  • True anticollision
  • ECC based originality signature
  • Fast read command
  • 50 pF input capacitance

SECURITY

  • Manufacturer programmed 7-byte UID for each device
  • Pre-programmed Capability container with one-time programmable bits
  • Field programmable read-only locking function
  • ECC based originality signature
  • 32-bit password protection to prevent unintended memory operations

APPLICATIONS

  • Smart advertisement
  • Goods and device authentication
  • Call request
  • SMS
  • Call to action
  • Voucher and coupons
  • Bluetooth or Wi-Fi pairing
  • Connection handover
  • Product authentication
  • Mobile companion tags
  • Electronic shelf labels
  • Business cards

Parameters

ItemNtag216 Chip Card
MaterialPVC, PET, or Paper
TypeNFC
ProtocolISO/IEC 14443
Frequency13.56 MHz
User Memory888 bits
ColorCustom
ChipNtag216 Chip
Reading distance100mm
Craftsilkscreen logo/Laser serial number/UID print, etc
Working Temperature-20~+70°C
Size85.5*54mm
Data Retention10 years
Erase cycle100,000 times
SamplesFree samples are available upon request
