NTAG213 Card Inlay

The Card inlay is a very important component of RFID smart cards, which directly affects the performance of the card. Therefore, you are better to choose a reliable supplier.

  • Xinyetong has more than ten years of production experience, advanced production equipment, and mature technology, to ensure the stability and effectiveness of our inlay.
  • Different sizes, materials, chips are available, and you can personalize it.
  • 24-hour one-on-one service, Fast delivery, and Good packaging.

Ask For Price

DESCRIPTION

Card Inlay, an indispensable part of the RFID card, is essentially a semi-finished product. The NTAG213 Card Inlay has the full features of the Ntag213 chip, working on 13.56MHz, which is widely used in various RFID smart cards.

Xinyetong has advanced laminating equipment, using ultrasonic automatic touch welding technology, can accurately control the thermal cooling humidity, as well as laminating time, to ensure the stability and effectiveness of antenna and chip.

FEATURES

  • Appearance: flat and smooth, bright and clean, not easy to break, with a certain toughness
  • Styles: a variety of styles and sizes are available
  • Personalized customization: can be customized according to your requirements
  • Encapsulation: In addition to the Ntag213 chip,125KHz, 13.56mhz, 860-960MHz chips can be encapsulated on demand

COMMONLY USED SIZE

We offer customized services, and our card Inlay, come in various sizes, chips, shapes you can choose from. Here are some commonly used sizes as follows.

Available ShapeCommonly Used SizeAvailable Chip

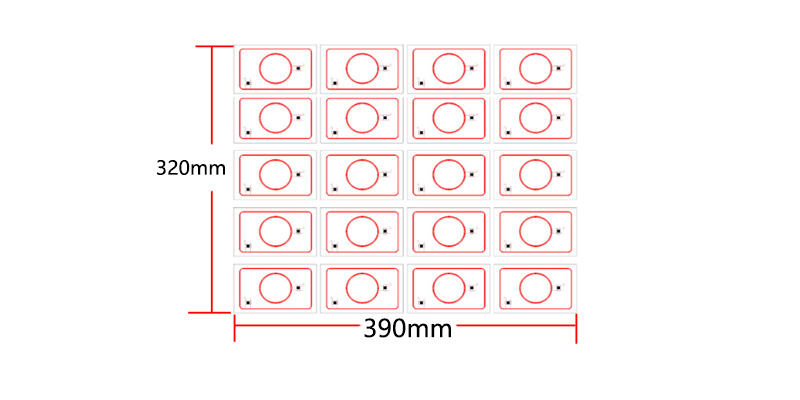

4×5Ntag213, Ntag215, Ntag216

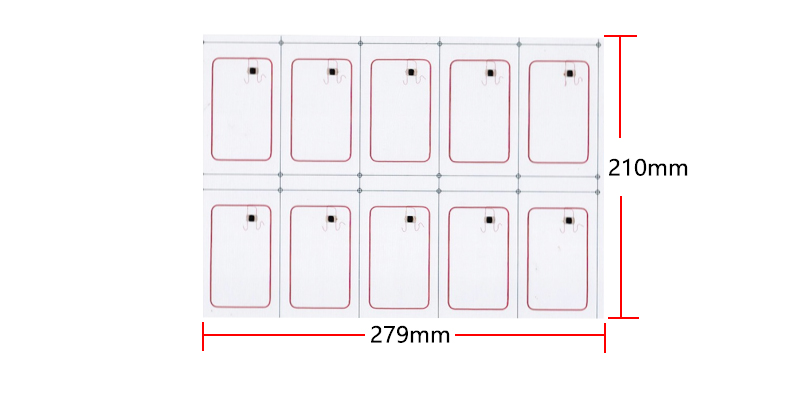

2×5Ntag213, Ntag215, Ntag216

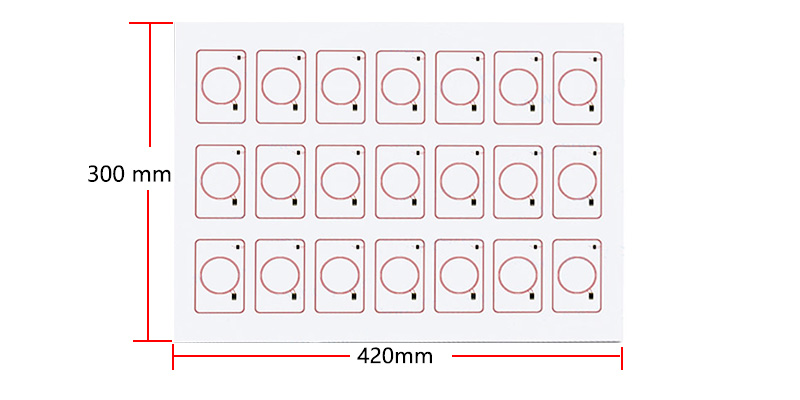

3×7Ntag213, Ntag215, Ntag216

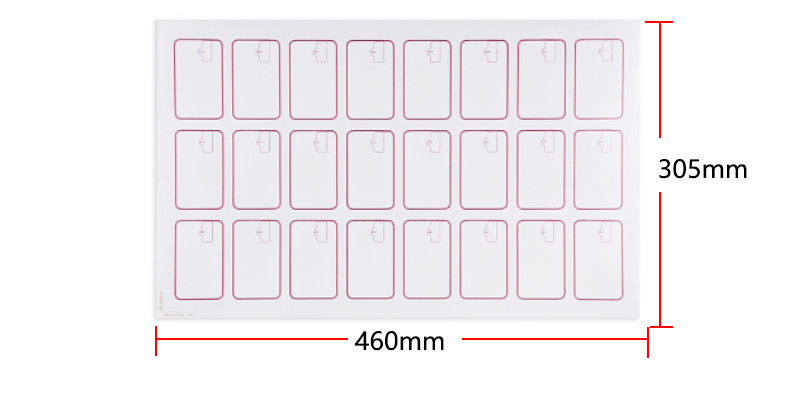

3×8Ntag213, Ntag215, Ntag216

Parameters

ItemNFC Ntag213 bubble sticker
ChipNTAG213
Frequency13.56MHz
ProtocolISO14443A
Size18*18mm, 30*30.5mm, 35*35mm, 42*42mm, 45*18mm,etc.
Memory144 bytes
Reading distance0-10cm
Write Endurance100000 times
Working Temperature-25–65℃
Data Retention Time10 years
Printing OptionsSilk-screen printing, Laser Engraving, CMYK full color, Pantone, etc.
Crafts AvailableLogo or number printing, Bar code, QR code, etc.
SamplesFree samples are available upon request
