13.56MHz Mini PPS Laundry tag

There are many kinds of PPS Laundry Tags. They operate at different frequencies. They have different sizes and shapes. Now, the RFID laundry tag that we are going to introduce is an HF PPS Laundry tag with a small size.

How small is it? This Mini PPS Laundry Tag is only dia 13mm. And there are two holes that make it convenient to sew on linen, not easy to fall off. Its RF performance is up to the RFID chip that it uses. And you can customize it depending on the function you want to achieve.


Ask For Price

FEATURES

  • Waterproof & Good insulation performance
  • High-temperature resistance & Rubbing resistance
  • Anti-interference design
  • Near-field multi-label recognition
  • Pressure resistant & Chemical corrosion resistance
  • Recyclable for more than 200 times
  • Support for customization

APPLICATIONS

  • Industrial laundry tracking
  • Rent garment industry
  • Laundry management
  • Hotel linen management
  • Hospital linen management
  • Industrial process control system and automation management
  • Automotive engine maintenance management
  • Chemical material tracking management
  • Rigid and durable mechanical products management
  • Special electrical products and chemical devices management

COMMONLY USED SIZE

Available ShapeCommonly Used SizeAvailable Chip

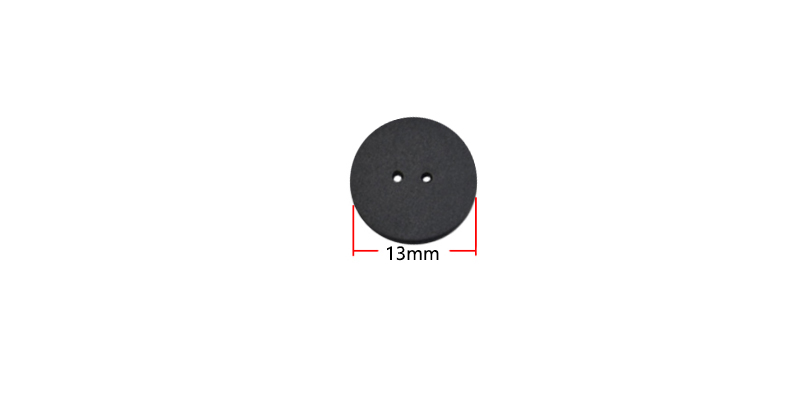

φ13mmNtag 213/215/216,
MF 1K S50/4K S70,
I code Sli/-S/-X, etc
φ15mmNtag 213/215/216,
MF 1K S50/4K S70,
I code Sli/-S/-X, etc

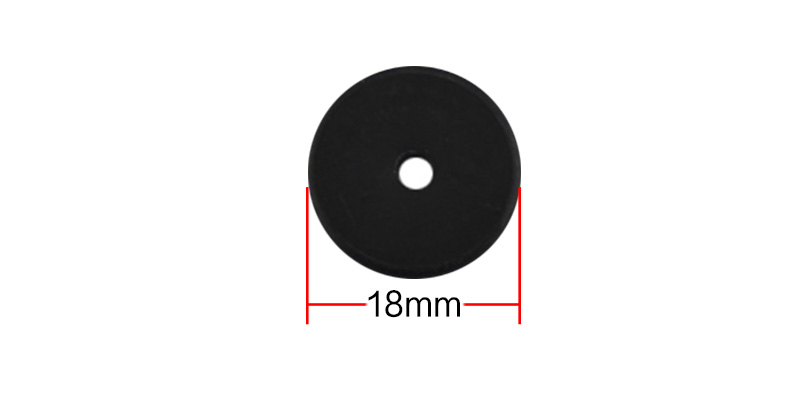

φ18mmNtag 213/215/216,
MF 1K S50/4K S70,
I code Sli/-S/-X, etc

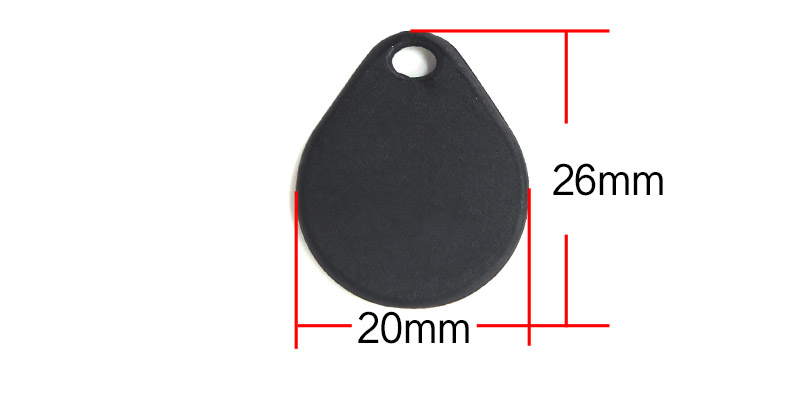

20*26 mmNtag 213/215/216,
MF 1K S50/4K S70,
I code Sli/-S/-X, etc
φ26mmNtag 213/215/216,
MF 1K S50/4K S70,
I code Sli/-S/-X, etc
φ30mmNtag 213/215/216,
MF 1K S50/4K S70,
I code Sli/-S/-X, etc

Parameters

Item13.56MHz Mini PPS Laundry tag
MaterialPPS
ChipNtag213,Ntag215, Ntag216, ICODESLIS, etc
Frequency13.56MHz
ProtocolISO14443A, ISO15693 (depend on chip)
Colorblack
Sizeφ13mm, φ15mm, φ18mm, φ20mm, φ26mm, φ30mm, etc.
Thickness2.5mm or on demand
Washable timeMore than 200 times
Memorydepend on chip
Reading distance0-10cm
Write Endurance100000 times
Working Temperature-30°C to 200°C
Data Retention Time10 years
SamplesFree samples are available upon request
