RFID PVC Key Fob

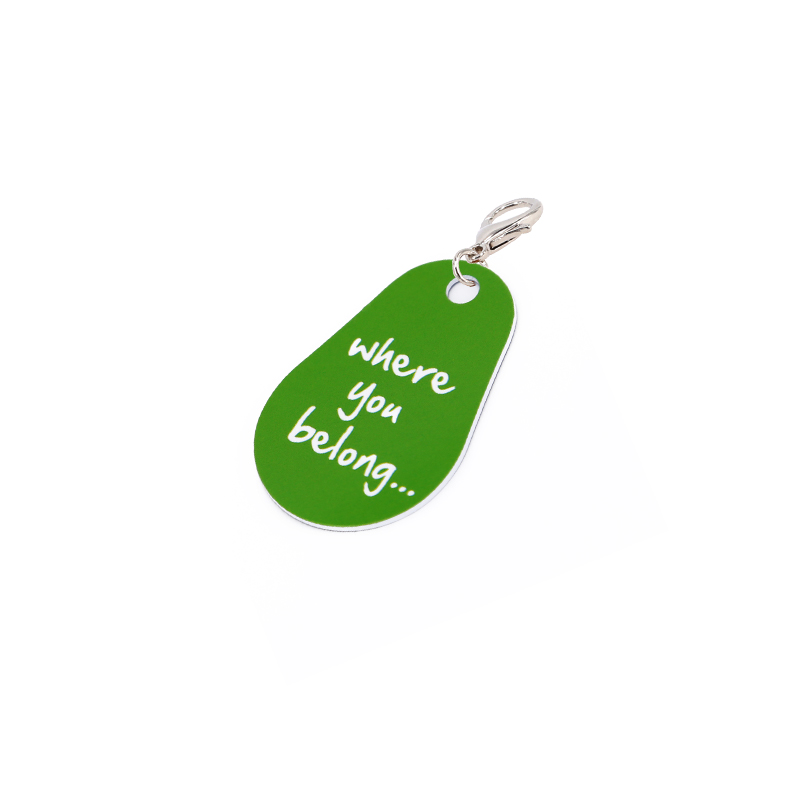

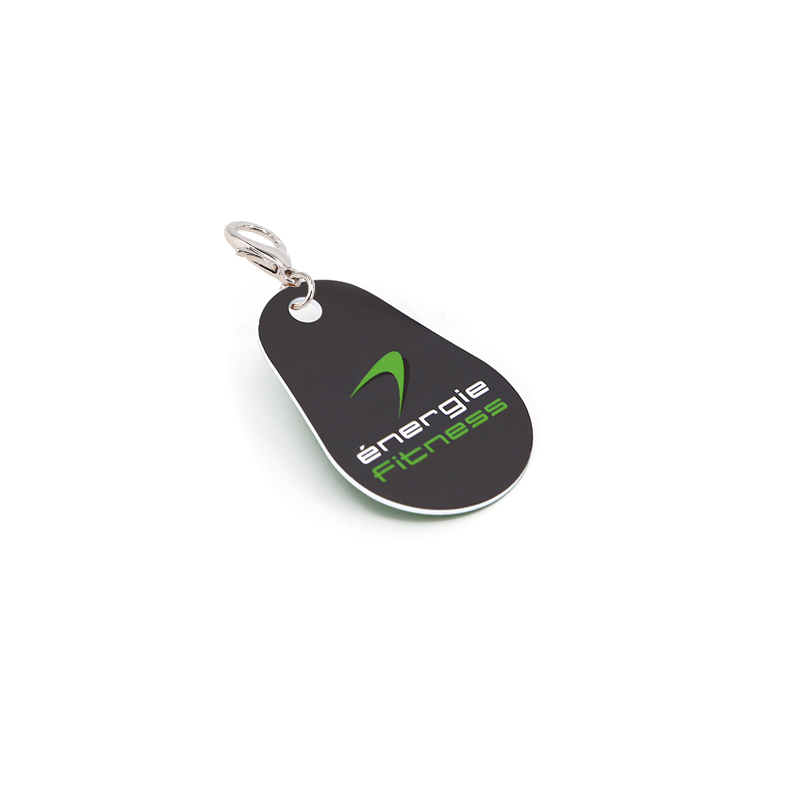

    • RFID PVC Key Fob consists of a small nonstandard RFID PVC card and a keyring or rope. The special design makes it much more convenient. You can easily attach it to your key chain or bag and it not easy to lose.

    Like common RFID PVC cards, RFID proximity key fob supports double-printing. Also, it can be personalized by the custom of color, logo, shape, craft, or chip. In a nutshell, Xinyetong can customize for you depending on your requirements.

    Ask For Price

    FEATURES

    • Light, durable, and low cost
    • Available with stretch rope or key chain, easy to carry
    • Various shapes, colors, sizes, and crafts are available
    • LF chips, HF chips, and UHF chips are available
    • Operating range up to 100mm (depending on various parameters)
    • Wide application: Access control management, membership management, parking management, child pickup, cashless payment, social interaction, etc.

    AVAILABLE CHIPS

    LF 125kHz Chips
    Chip NameProtocolCapacityFrequency
    TK4100/64 bits125 kHz
    EM4200/128 bits125 kHz
    EM4305/512 bits125 kHz
    T5577/330 bits125 kHz
    HF 13.56 MHz Chips
    Chip NameProtocolCapacityFrequency
    Ntag213ISO14443A180 byte13.56 MHz
    Ntag215ISO14443A540 byte13.56 MHz
    Ntag216ISO14443A924 byte13.56 MHz
    MIFARE Classic 1KISO14443A1 KB13.56 MHz
    MIFARE Classic 4KISO14443A4 KB13.56 MHz
    MIFARE Ultralight EV1ISO14443A80 byte13.56 MHz
    MIFARE Ultralight CISO14443A192 byte13.56 MHz
    ICODE SLIXISO156931024 bits13.56 MHz
    860~960 MHz UHF Chips
    Chip NameProtocolCapacityFrequency
    Alien H3ISO18000-6C512 bits860~960 MHz
    Impinj Monza 4ISO18000-6C96 bits860~960 MHz
    UCODE G2iLEPCglobal Class1Gen2128 bits860~960 MHz

    Parameters

    ItemRFID PVC Key Fob
    MaterialPVC
    ChipLF chips/ HF chips
    Frequency125 kHz or 13.56MHz
    ProtocolISO14443A
    Colorblack, yellow, blue, etc
    SizeCustom
    MemoryDepend on chips
    Reading distance0-10cm
    Write Endurance100000 times
    Working Temperature-25°C to 65°C
    Data Retention Time10 years
    Printing OptionsSilk-screen printing, Laser Engraving, CMYK full color, Pantone, etc.
    Crafts AvailableLogo or number printing, Bar code, QR code, etc.
    SamplesFree samples are available upon request
