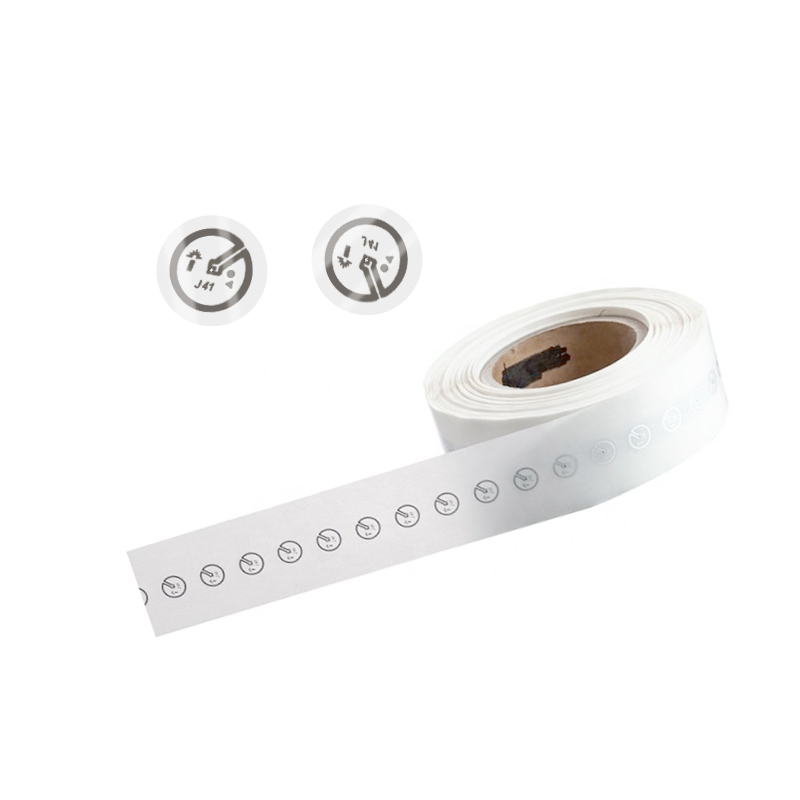

Impinj M4 UHF RFID Small Inlay

This UHF RFID Inlay is very small, and its diameter is only 12mm. With the Impinj M4 chip, it is very powerful. Impinj M4 inlay has higher read reliability, 66% higher than other chips. Also, it features high security, excellent RF performance, and good flexibility.

Because it is small enough, Impinj M4 UHF RFID Small Inlay can be installed on small target objects. Because it is powerful, it is especially suitable for applications that are difficult to control tag positioning. For example, retail, baggage handling, asset tracking, etc.

FEATURES

This RFID inlay adopts the Impinj M4 chip. And it has excellent RF performance, higher read reliability, and good confidentiality. The detail characteristics of the Impinj M4 chip as follows:

True3D™ antenna technology—patented, dual-differential antenna ports enable compact Omni-directional tags, improving item-level read reliability
QT™ technology—protects business-sensitive data while assuring consumers of privacy
Available memory options to support large user-memory applications
BlockPermalock Gen2 command adds flexibility in memory usage
FastID™ mode enables 2x to 3x faster EPC+TID inventory for authentication and other TID-based applications
TagFocus™ mode suppresses previously read tags to enable capture of more tags
Extended temperature range (-40 ℃ ~ +85 ℃) for performance under hard conditions
Impinj’s field-rewritable NVM (optimized for RFID) provides 100,000-cycle/50-year retention reliability
EPCglobal and ISO 18000-63 compliant, Gen2V2 compliant

APPLICATIONS

Logistics tracking

Asset Management
Supply chain Management
Parking Management
Warehouse Management
Retail Management
Luggage management
Personal experience and safety
Important document management
Other Applications

AVAILABLE OPTIONS

Parameters

Item	Impinj Monza 4 UHF RFID Mini Inlay
Chip	Impinj Monza 4
Frequency	UHF 860-960MHz
Protocol	ISO18000-6B/ISO 18000-6C EPC C1G2
Antenna Material	Aluminum

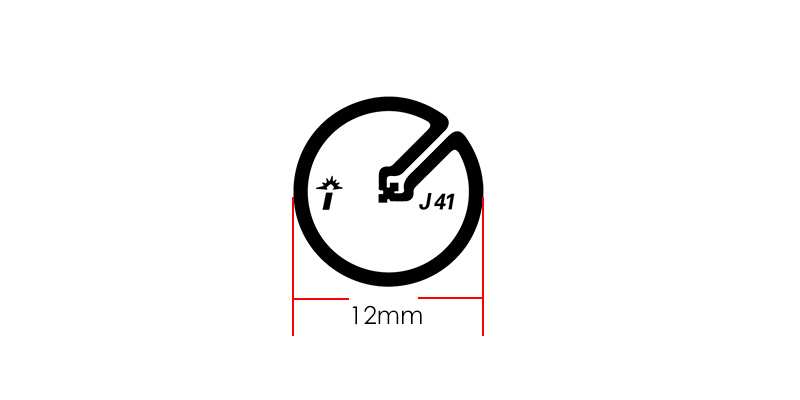

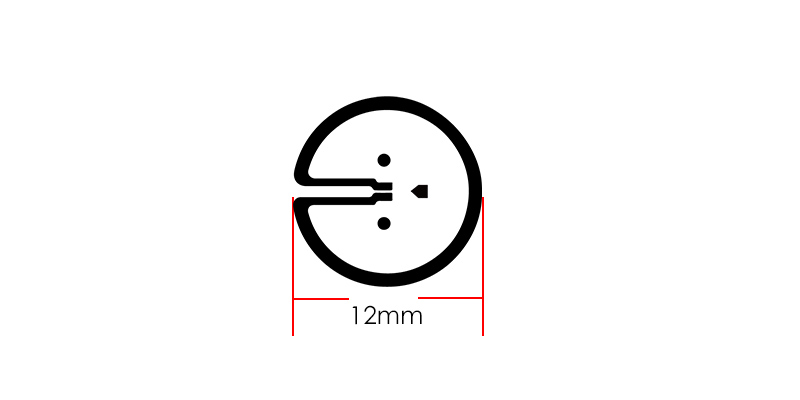

Size	Dia12 mm or Customized
Material	Coated paper, Glossy paper, Matte paper
Reading distance	0-10cm
Write Endurance	100000 times
Working Temperature	-25–65℃
Data Retention Time	10 years
Printing Options	Silk-screen printing, Laser Engraving, CMYK full color, Pantone, etc.
Crafts Available	Logo or number printing, Bar code, QR code, etc.
Samples	Free samples are available upon request
