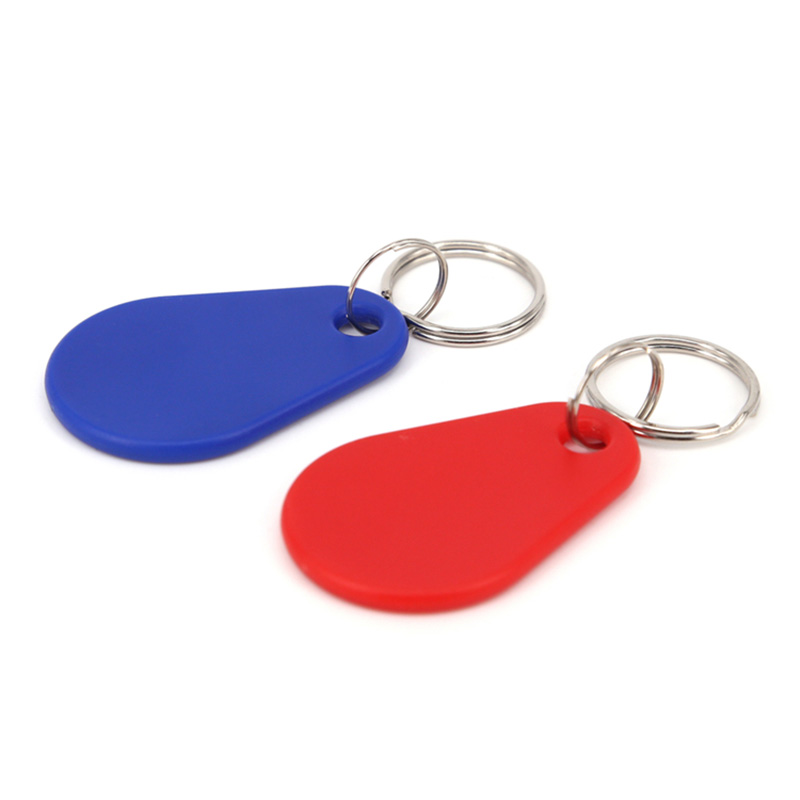

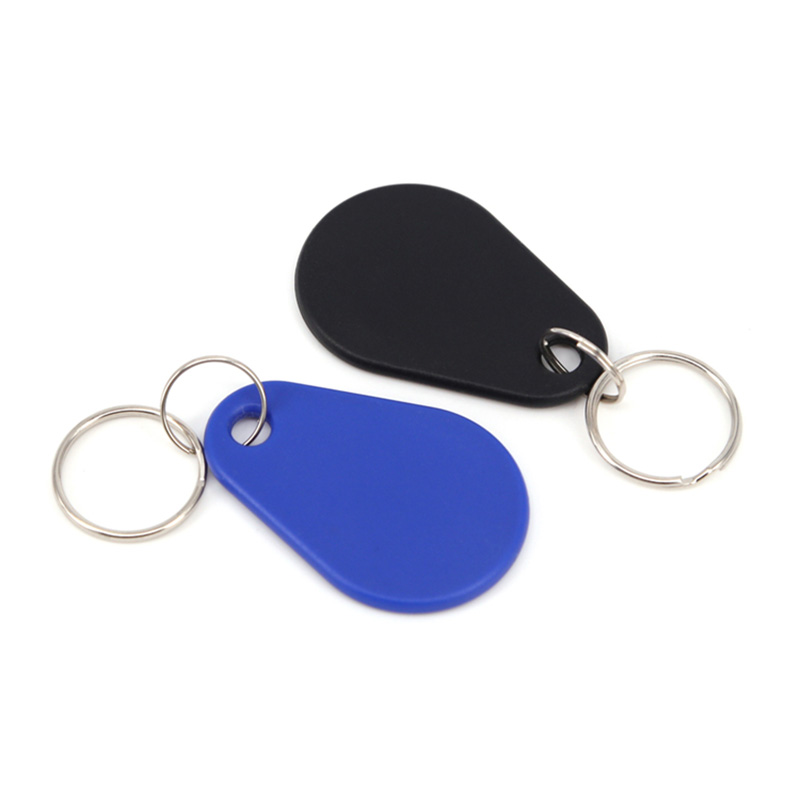

ABS Rewritable T5577 Keyfob

Among low-frequency RFID keyfobs, there are not many RFID keyfob that can support read and write. If you are looking for a rewritable keyfob, ABS Rewritable T5577 Keyfob will satisfy you. This RFID keyfob uses the ABS material that is durable and adopts the T5577 chip that supports read and write.

And the T5577 chip gives the keyfob higher security and good protection. For example, the same keyfob does not allow communication and data exchange on the T5577 reader with different configurations or working modes. More importantly, ABS T5577 Keyfob is much more cost-effective than other read-write keyfobs.


Ask For Price

FEATURES

  • Support for customized services
  • Durable and waterproof
  • Available with key chain, easy to carry
  • Contactless power supply
  • Contactless Read/Write data transmission
  • Rich and flexible configuration and working mode
  • Basic Mode or Extended Mode
  • Compatible with the Atmel T5557, ATA5567
  • Replacement for Atmel e5551/T5551 in most common operation modes
  • Configurable for ISO/IEC 11784/785 compatibility
  • Total 363 bits EEPROM memory: 11 blocks(32 bits+1 lock bit)
  • High Q-antenna tolerance due to in options
  • Adaptable to different applications: access control, animal ID and waste management

APPLICATIONS

  • Access control card
  • Parking lot management
  • Hotel inductive smart door lock card
  • Health insurance card
  • Campus ID card
  • Enterprise/factory attendance card
  • Gas card
  • Entertainment card
  • Club card
  • Supermarket membership card

COMMONLY USED SIZE

Xinyetong can offer all kinds of RFID keyfobs. There are diverse colors, various shapes, and different chips that you can choose. Here are some popular RFID key fob models as follows. If you don’t like these, please contact us and tell us what kind of RFID keyfob you want, we can make it for you.

StyleSizeAvailable Chip

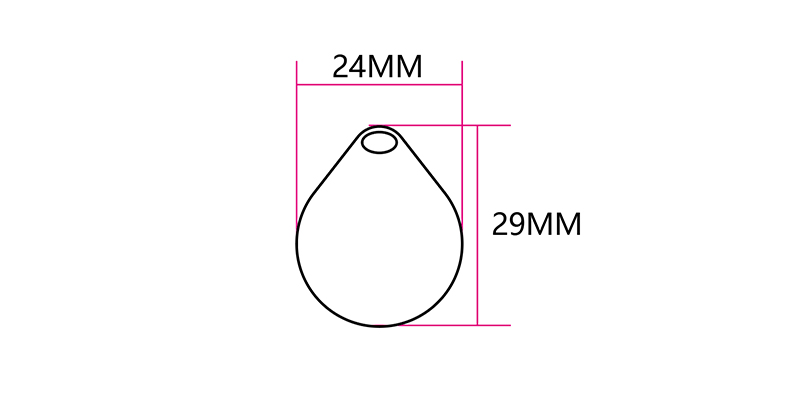

24*29 mmLF: T5577, EM4200, EM4305, TK4100, etc.
HF: Ntag213, Ntag215, Ntag216,etc.
30*45 mmLF: T5577, EM4200, EM4305, TK4100, etc.
HF: Ntag213, Ntag215, Ntag216,etc.

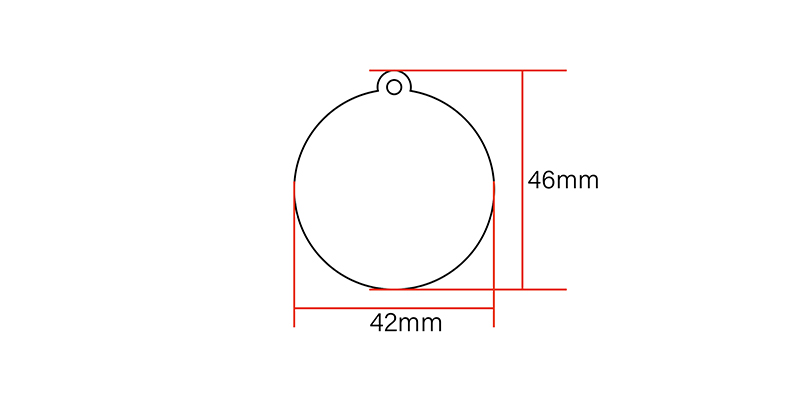

42*46 mmLF: T5577, EM4200, EM4305, TK4100, etc.
HF: Ntag213, Ntag215, Ntag216,etc.

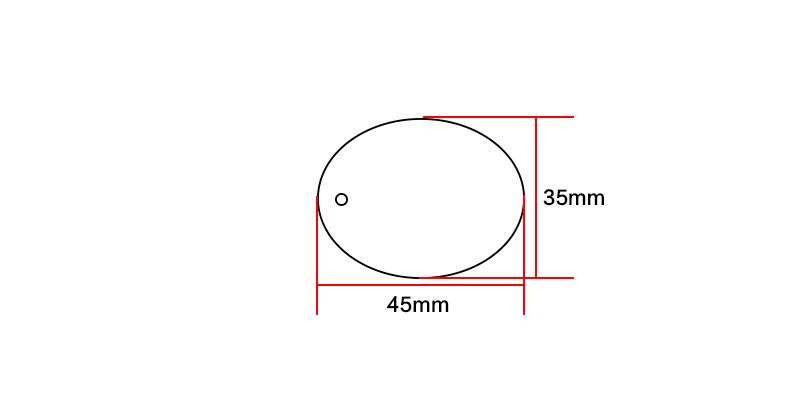

35*45 mmLF: T5577, EM4200, EM4305, TK4100, etc.
HF: Ntag213, Ntag215, Ntag216,etc.

Parameters

ItemABS Rewritable T5577 Keyfob
MaterialABS
ChipT5577
Frequency125 kHz
Eeprom363 bytes
R/WRead/ Write
ProtocolISO 11784/11785
ColorBlue, Red, Yellow, Green, black, etc
SizeCustom
Reading distance0-10cm
Write Endurance100000 times
Working Temperature-25°C to 65°C
Data Retention Time10 years
Printing OptionsSilk-screen printing, Laser Engraving, CMYK full color, Pantone, etc.
Crafts AvailableLogo or number printing, Bar code, QR code, etc.
SamplesFree samples are available upon request
