13.56 MHz Mini FPC RFID Tag

    • 13.56 MHz FPC RFID Tag is made of FPC material, soft and flexible. And it operates at 13.56 MHz frequency and features high temperature and pressure resistance. This RFID tag can be as small as 10mm in size.

    Mini FPC RFID tags can be integrated into injection molded parts to prevent RFID labels from being removed or counterfeited. So it is widely used in anti-counterfeiting traceability of articles.

    Xinyetong Mini FPC RFID tags vary in sizes, chips, shapes, etc. that you have many choices. Or you can contact us, and customize it.

    Ask For Price

    FEATURES

    • Operating frequency: 13.56 MHz
    • Operating distance up to 100mm
    • Contactless transmission of data and supply energy
    • Small and soft, can be embedded in small objects
    • Lightweight and thin thickness
    • High-temperature resistance, and good flexibility
    • Good anti-counterfeiting effect and high safety performance
    • Various sizes, chips are available
    • Support customization

    APPLICATION

    • Retail Environment
    • Anti-counterfeiting traceability
    • Tray management
    • Asset management
    • Washing industry
    • Product Authentication
    • High-temperature injection molding
    • Precious Jewelry Management
    • Silicone bracelet with secondary packaging
    • Other Applications

    AVAILABLE OPTIONS

    Available ShapeAvailable SizeAvailable Chip

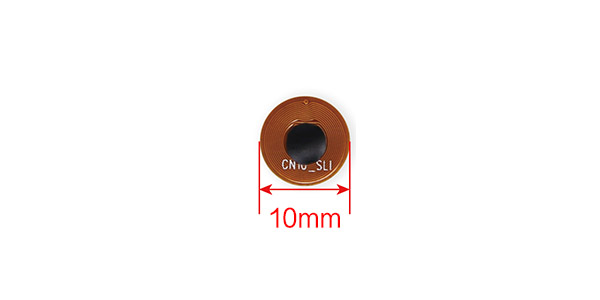

    φ 10 mmNtag 213/215/216,
    MF 1K S50/4K S70,
    MF EV1 2K/4K/8K,
    I code Sli/-S/-X, etc

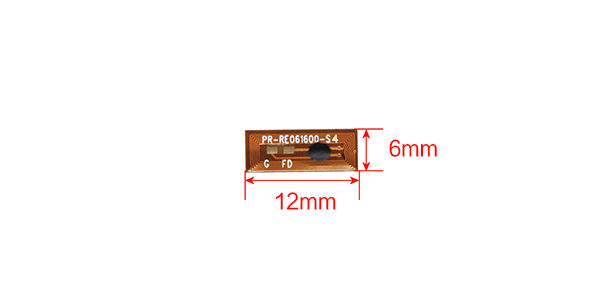

    12*6 mmNtag 213/215/216,
    MF 1K S50/4K S70,
    MF EV1 2K/4K/8K,
    I code Sli/-S/-X, etc

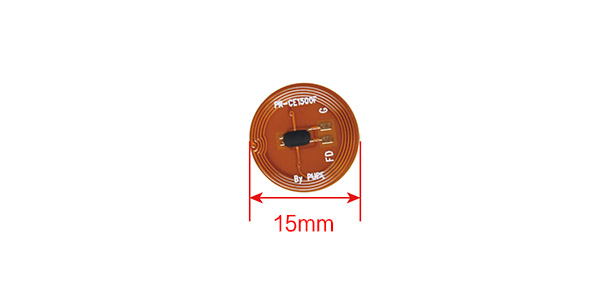

    φ 15 mmNtag 213/215/216,
    MF 1K S50/4K S70,
    MF EV1 2K/4K/8K,
    I code Sli/-S/-X, etc

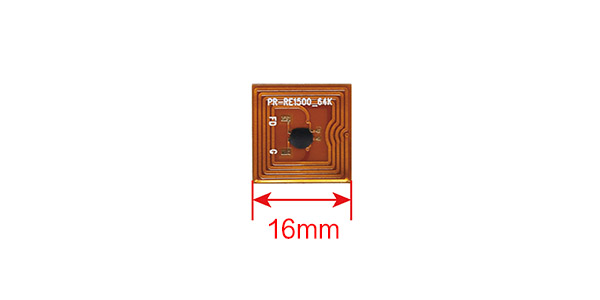

    16*16 mmNtag 213/215/216,
    MF 1K S50/4K S70,
    MF EV1 2K/4K/8K,
    I code Sli/-S/-X, etc

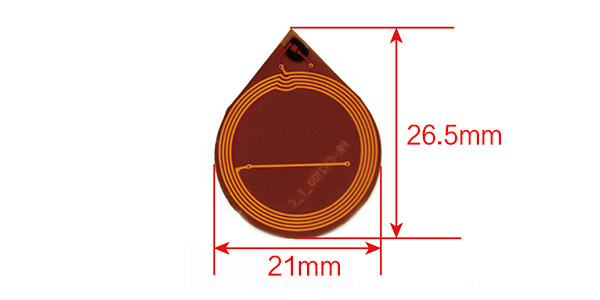

    21*26.5 mmNtag 213/215/216,
    MF 1K S50/4K S70,
    MF EV1 2K/4K/8K,
    I code Sli/-S/-X, etc

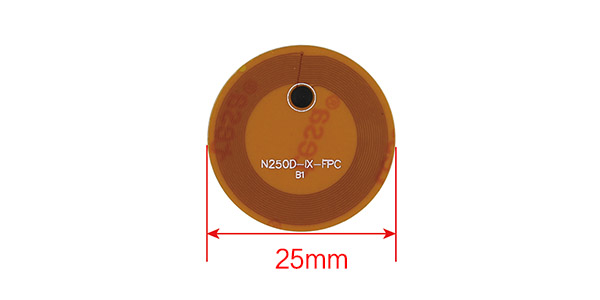

    φ 25 mmNtag 213/215/216,
    MF 1K S50/4K S70,
    MF EV1 2K/4K/8K,
    I code Sli/-S/-X, etc

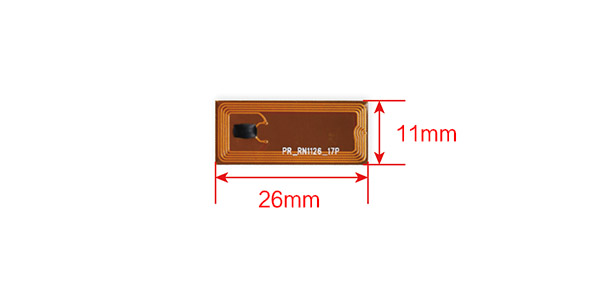

    26*11 mmNtag 213/215/216,
    MF 1K S50/4K S70,
    MF EV1 2K/4K/8K,
    I code Sli/-S/-X, etc

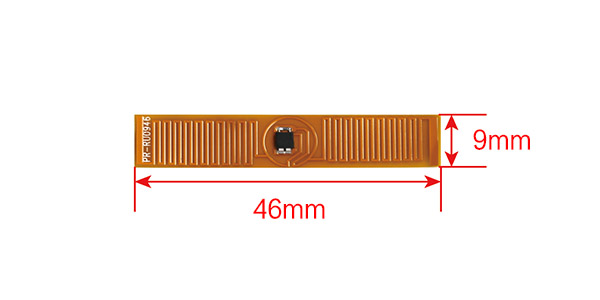

    46*9 mmNtag 213/215/216,
    MF 1K S50/4K S70,
    MF EV1 2K/4K/8K,
    I code Sli/-S/-X, etc

    Parameters

    Item13.56 MHz Mini FPC RFID Tag
    MaterialFPC
    ChipN213/215/216, MF 1K S50/4K S70, MF EV1 2K/4K/8K, MF Ev1, UTL/UTL-C, I code Sli/-S/-X, etc (optional)
    ProtocolISO14443A/B、ISO15693、ISO18092（depending on chip）
    Frequency13.56 MHz
    Size35*26 mm, 39*23 mm, 40*25 mm, 32*48 mm, etc
    ApplicationRetail Environment, Social Media, Games & Toys, Location, Media & Ads, Business Cards, Loyalty Apps, Electronics Pairing, Product Authentication, Ticketing & Payment, Library Management
    SamplesFree samples are available upon request
    Delivery Time5-7days after confirmation
    ShippingDHL/TNT/FedEx /UPS ,By Air / Sea or as required
    Package 200pcs/white box,15 boxes/carton
    White box size:2296cm, Carton size: 52.522.515cm
    Gross Weight :1.4kg/box,21kg/carton
