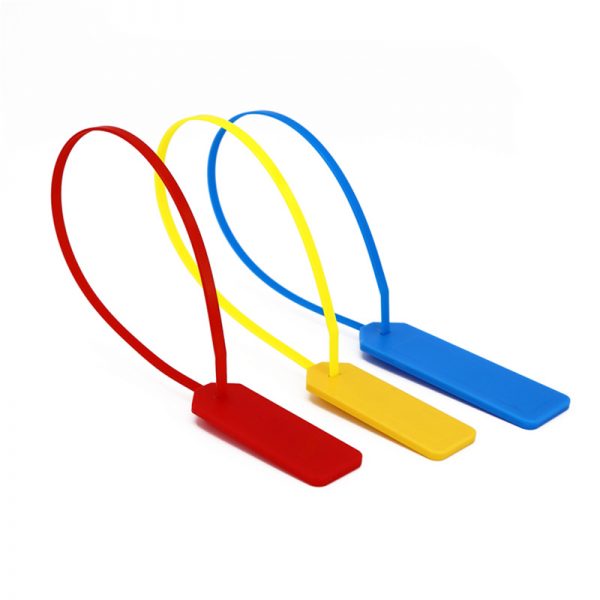

RFID Cable Tie Tag

RFID Cable Tie Tag, you can also call the Zip Tie tag. For its name, different countries have different names. It is an RFID tag that can easily tie to the target object.

The RFID tag is in the external position of the binding, not affected by the material of the binding. It features stable reading, moisture resistance, high-temperature resistance, and easy to use.

RFID Zip Tie Tag is commonly used to bundle electrical cables but can be used for many other things. It is great for logistics tracking, power line classification, asset tracking management, etc.

Ask For Price
cable tie tag

FEATURES

  • Lightweight, easy to install, high safety, indoor and outdoor can be used.
  • Multi-tag identification, high sensitivity, high speed, with a unique global identification code
  • Waterproof, high temperature resistant, moisture resistant, stable performance
  • Label unidirectional structure design, non – detachable
  • Support customization, a variety of colors and a variety of chips optional

APPLICATIONS

  • Power line classification
  • Telecommunications line management
  • Warehouse management
  • Guardianship management
  • Express parcels
  • Asset tracking management
  • Sealing of poultry, food, hairy crabs
  • Other Applications

AVAILABLE OPTIONS

StyleSizeAvailable Chip

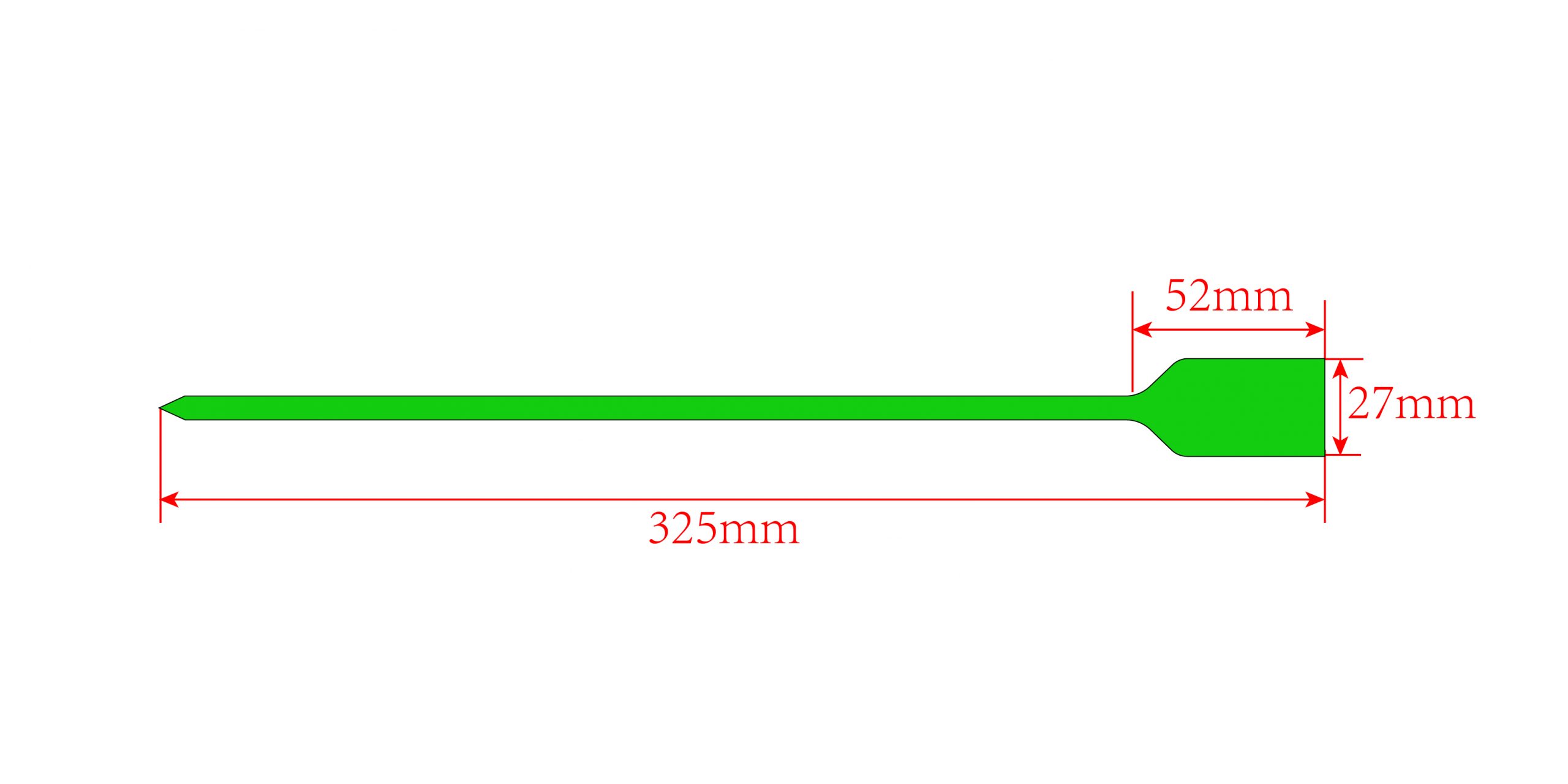

325*27mmUHF: Alien H3, Monzaa 4E, 4D, 4QT, R6, R6P;
HF: N213,N216,Ult,F08,S50, etc

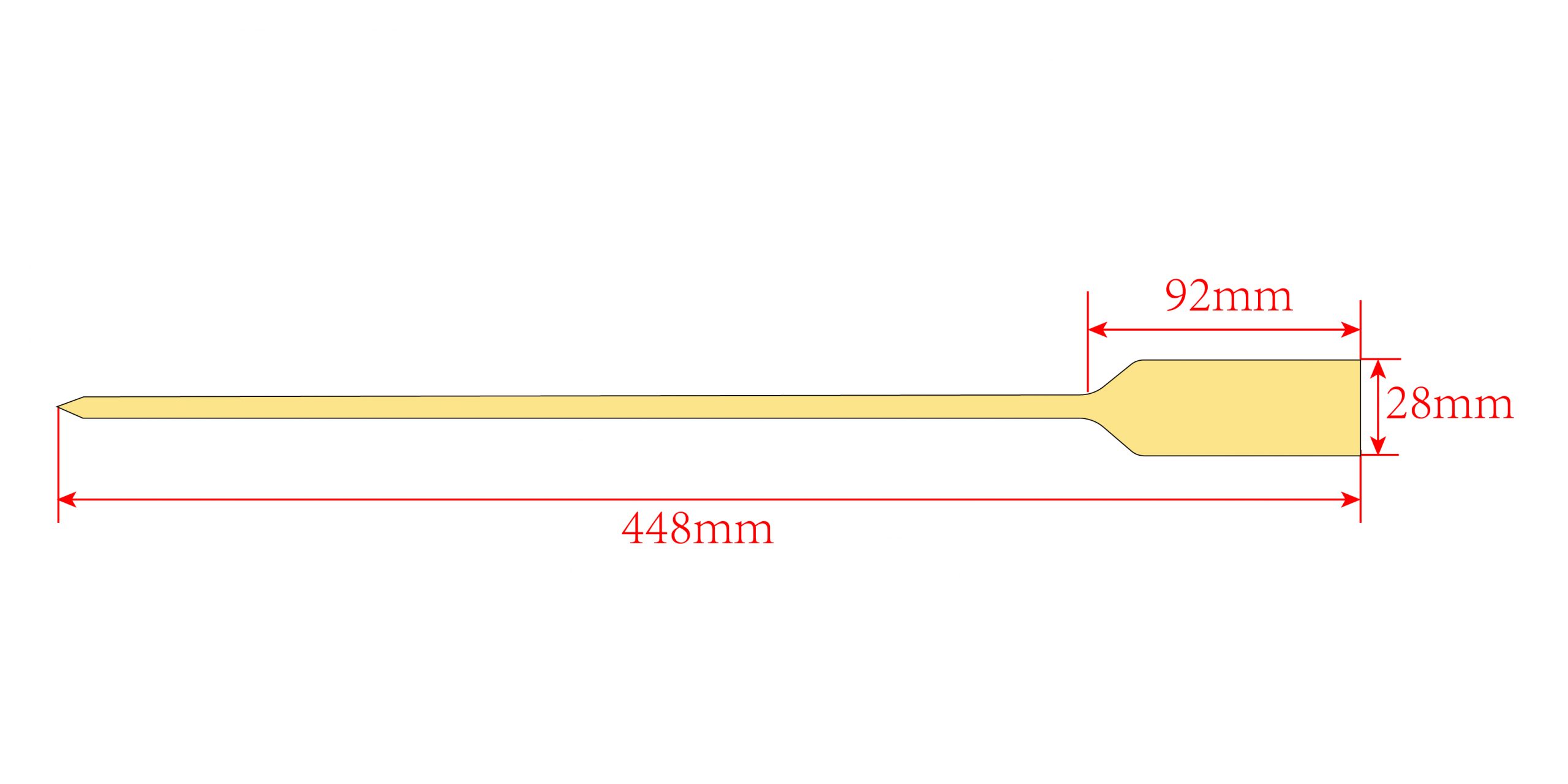

448*28mmUHF: Alien H3, Monzaa 4E, 4D, 4QT, R6, R6P;
HF: N213,N216,Ult,F08,S50, etc

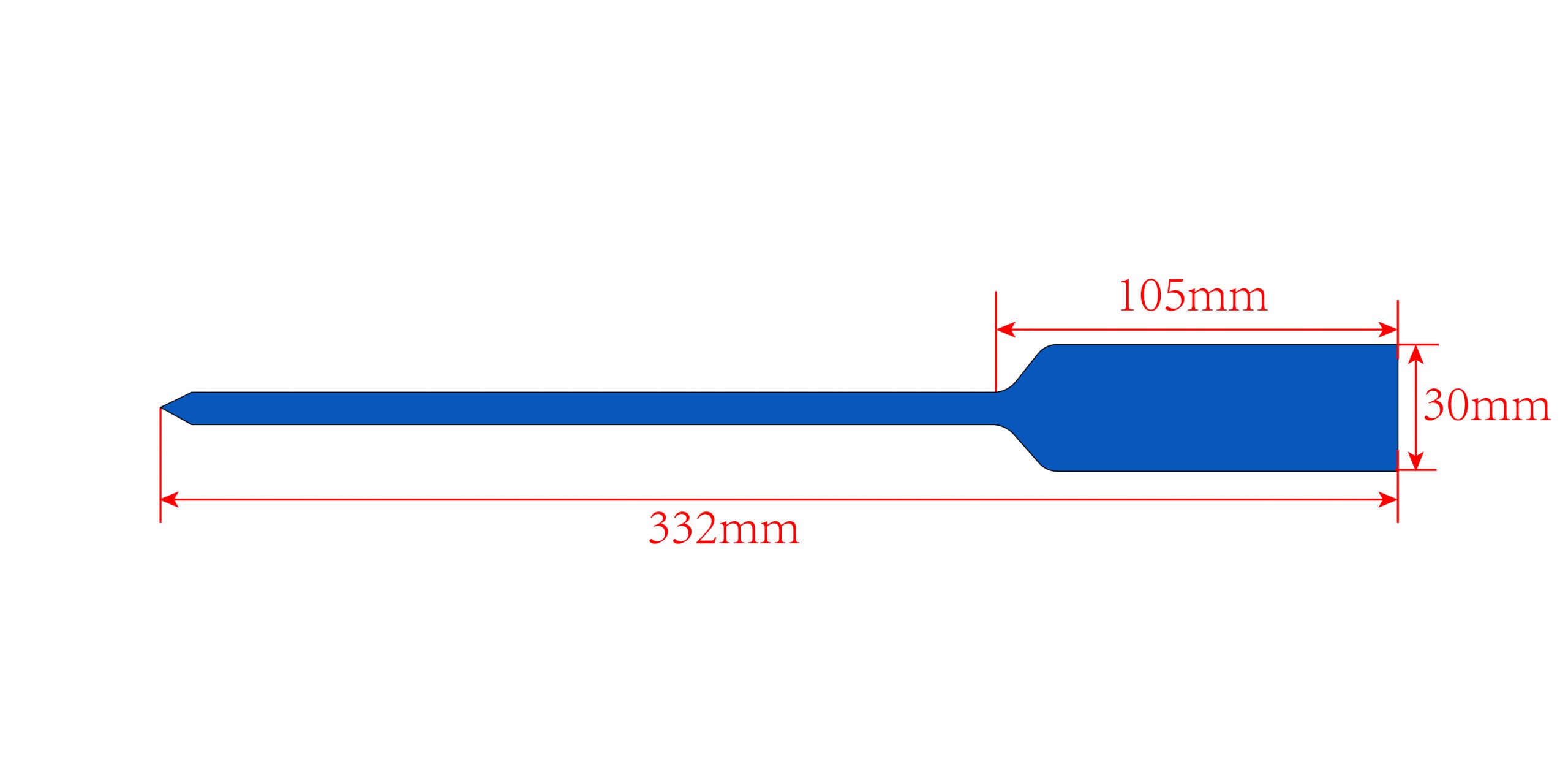

332*30mmUHF: Alien H3, Monzaa 4E, 4D, 4QT, R6, R6P;
HF: N213,N216,Ult,F08,S50,etc

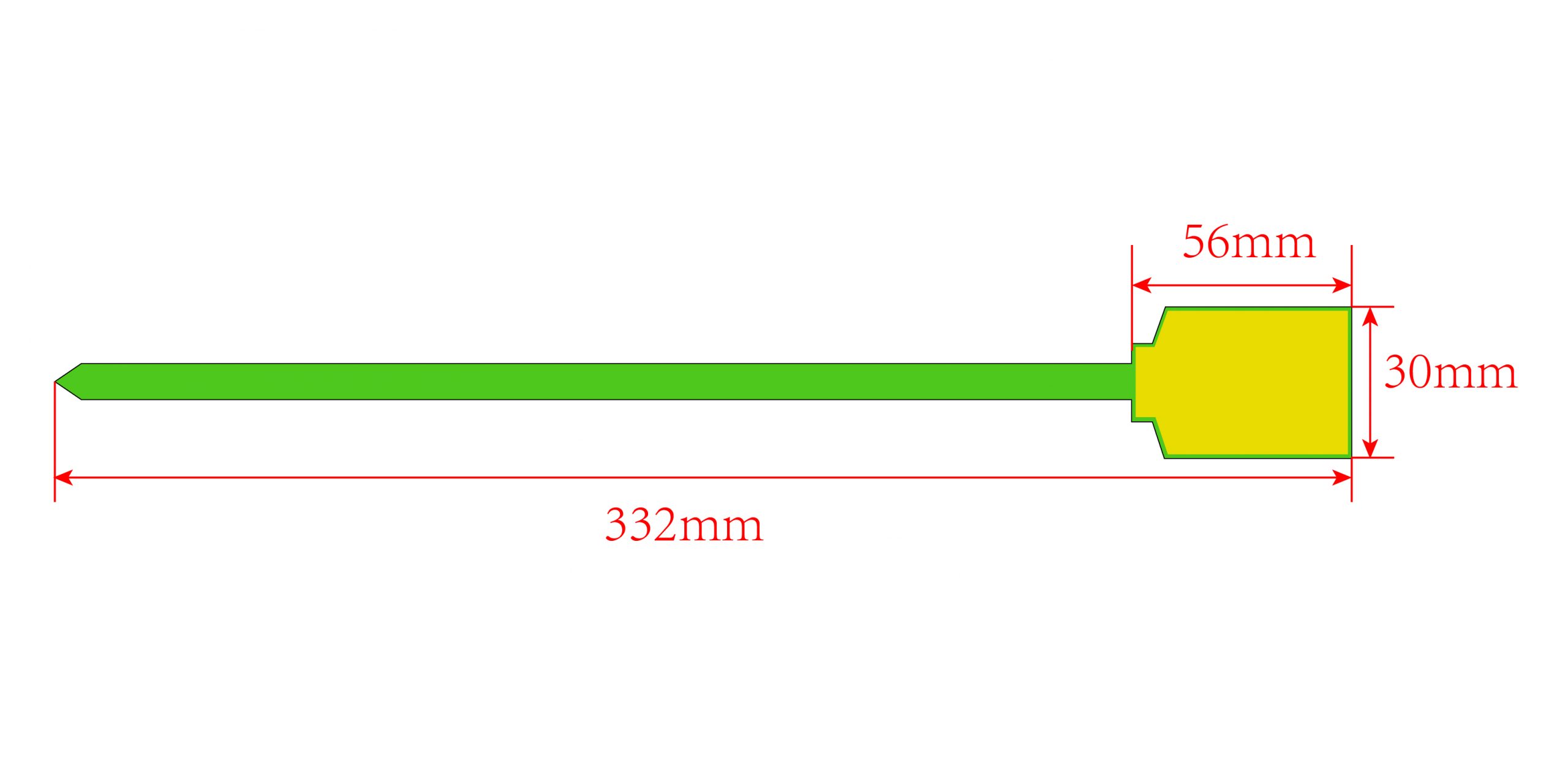

332*30mmUHF: Alien H3, Monzaa 4E, 4D, 4QT, R6, R6P;
HF: N213,N216,Ult,F08,S50, etc

Parameters

ItemRFID Cable Tie Tag
MaterialABS
ChipAlien H3, Monzaa 4E, 4D, 4QT, R6, R6P, N213,N216,Ult,F08,S50
Frequency13.56Mhz,860-960Mhz
ProtocolISO18000-6C, EPC C1 GEN2
ColorMulticolor Optional
Size325*27mm, 448*28mm, 332*30mm, 332*30mm, etc.
MemoryDepend on chip
Reading distance0-10cm
Write Endurance100000 times
Working Temperature-25°C to 65°C
Data Retention Time10 years
SamplesFree samples are available upon request
