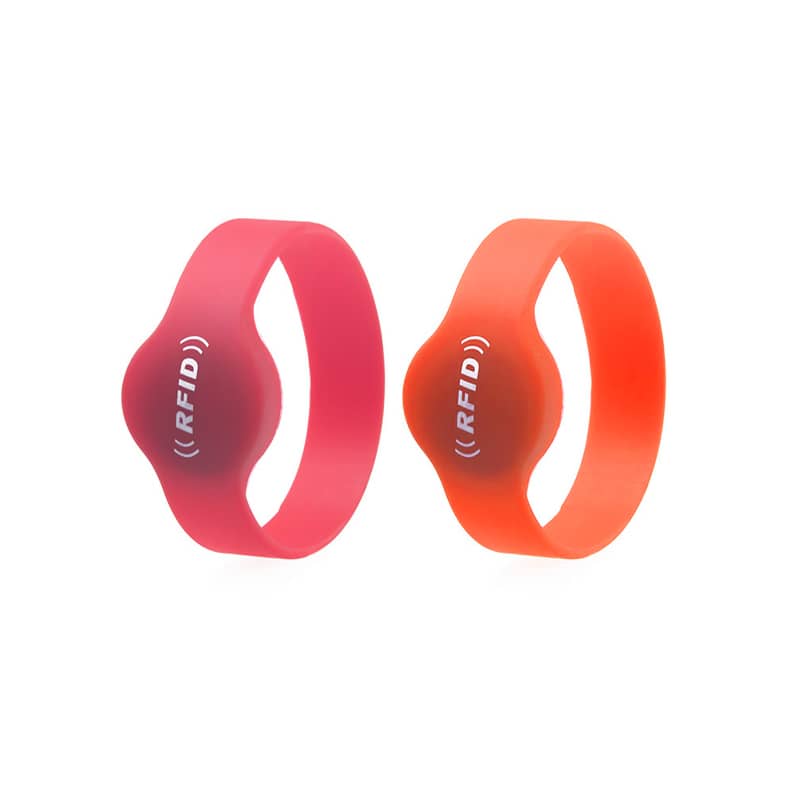

Round Head Close-Loop RFID Wristband

XINYETONG’s stylish multifunctional round silicone wristband is integrated with the RFID tag embedded in the round surface.
These comfortable silicone bracelets are waterproof and wear-resistant, and are mainly used in leisure places, theme parks, water parks, sports activities and outdoor activities. Applications include brand activation, cashless payment and access control, and can also be used to capture visitor data, monitor activity time and perform secure locker management.

Details
Specification
Download

FEATURES

FDA level silicone rubber material, Non-toxic, non-corrosive, environment-friendly
Durable, waterproof, and heat-resisting
Soft, skin-friendly and comfortable
Contactless transmission of data and supply energy
Operating frequency of 13.56MHz
Data transfer of 106 Kbit/s
Data integrity of 16-bit CRC, parity, bit coding, bit counting
Typical ticketing transaction time of<100ms (including backup management)
Operating distance up to 100mm (depending on antenna geometry and reader configuration)

APPLICATIONS

Swimming pools
Bath center
Hotel management
Amusement parks
Exhibitions
Carnival
Music Festival
Event Ticketing

COMMONLY USED SIZE

Xinyetong can offer various silicone wristbands for different occasions. Here are some popular silicone wristband models as follows, and if you want to see more models, you can download our RFID Wristband Catalogue Datasheet.

Learn More

Parameters

Item	Oval Close-Loop-Silicone RFID Wristband
Material	Silicone
Chip	Mifare 1K,NTAG213
Frequency	13.56MHz
Protocol	ISO14443A
Color	Blue, red, white, black, purple, green, purple, orange (Customizable)
Size	Ф55mm\|Ф62mm\|Ф65mm\|Ф74mm
Eeprom	IK
Reading distance	0-10cm
Write Endurance	100000 times
Working Temperature	-25°C to 65°C
Data Retention Time	10 years
Printing Options	Silk-screen printing, Laser Engraving, CMYK full color, Pantone, etc.
Crafts Available	Logo or number printing, Bar code, QR code, etc.
Samples	Free samples are available upon request

Round-Head-Close-Loop-RFID-Wristband 下载

Style	Model	Size	Type	Available Chip
	XYT-004	Φ52/62 mm	Thin Band	Mifare 1k, Ntag213, Ntag215, Ntag216,etc.
	XYT-007	250*17 mm	Adjustable	Mifare 1k,Ntag213, Ntag215, Ntag216,etc.
	XYT-019	230*25 mm	Adjustable	Mifare 1k, Ntag213, Ntag215, Ntag216,etc.
	XYT-020	262*18 mm	Adjustable	Mifare 1k, Ntag213, Ntag215, Ntag216,etc.
