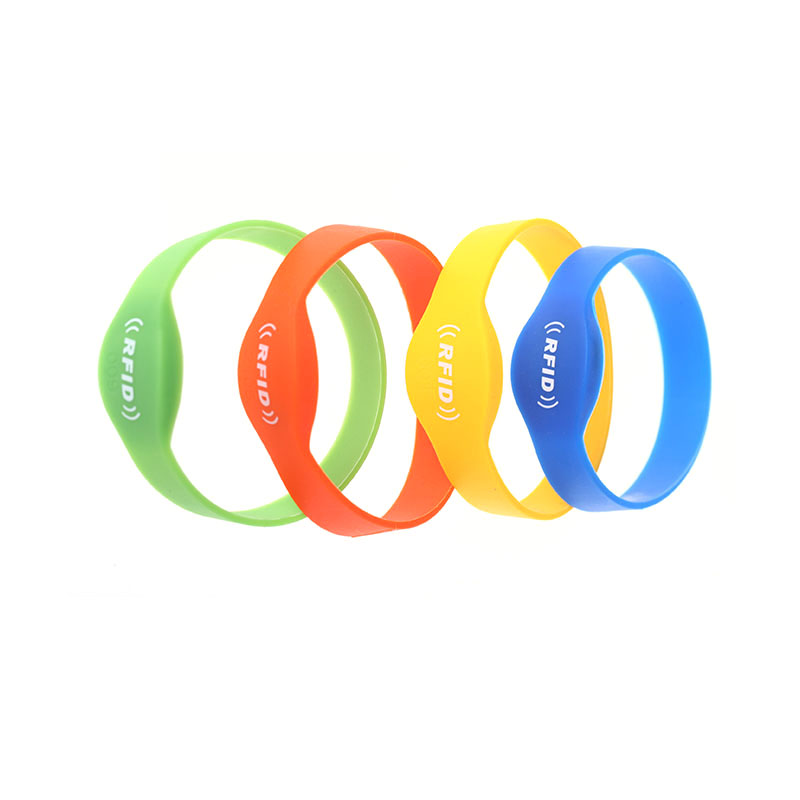

Oval Close-Loop-Silicone RFID Wristband

XINYETONG’s fashionable multifunctional oblate silicone wristband is integrated with RFID tags embedded in the circular surface.
These comfortable silicone bracelets are waterproof and wear-resistant and are mainly used in leisure places, theme parks, water parks, sports activities, and outdoor activities. Applications include brand activation, cashless payment, and access control, and can also be used to capture visitor data, monitor activity time, and perform secure locker management.

FEATURES

  • FDA level silicone rubber material, Non-toxic, non-corrosive, environment-friendly
  • Durable, waterproof, and heat-resisting
  • Soft, skin-friendly and comfortable
  • Contactless transmission of data and supply energy
  • Operating frequency of 13.56MHz
  • Data transfer of 106 Kbit/s
  • Data integrity of 16-bit CRC, parity, bit coding, bit counting
  • Typical ticketing transaction time of<100ms (including backup management)
  • Operating distance up to 100mm (depending on antenna geometry and reader configuration)

APPLICATIONS

  • Swimming pools
  • Bath center
  • Hotel management
  • Amusement parks
  • Exhibitions
  • Carnival
  • Music Festival
  • Event Ticketing

COMMONLY USED SIZE

Xinyetong can offer various silicone wristbands for different occasions. Here are some popular silicone wristband models as follows, and if you want to see more models, you can download our RFID Wristband Catalogue Datasheet.

StyleModelSizeTypeAvailable Chip

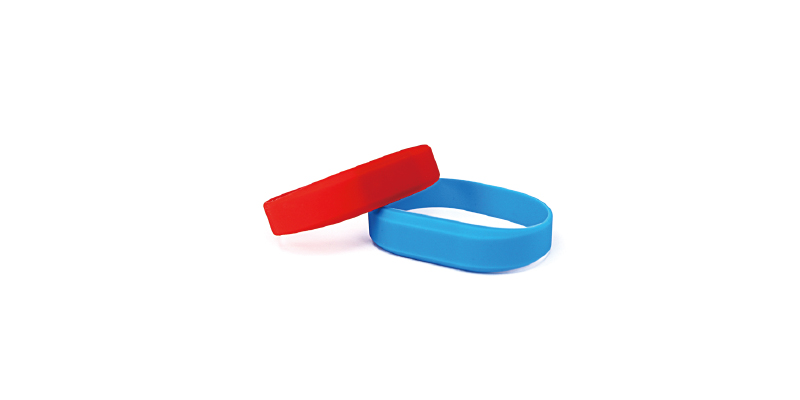

XYT-004Φ52/62 mmThin BandMifare 1k, Ntag213, Ntag215, Ntag216,etc.

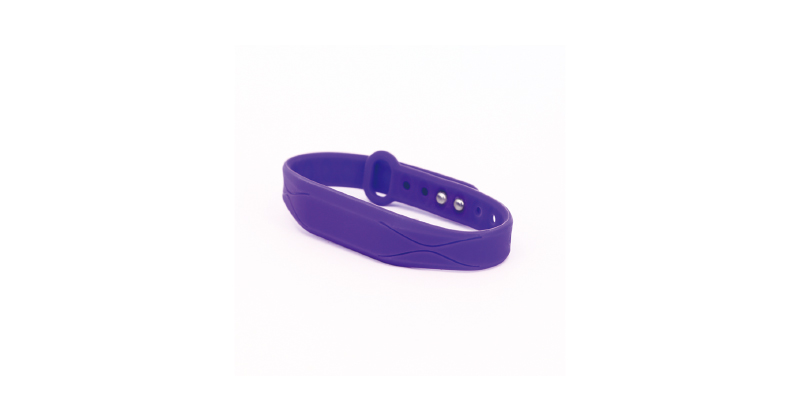

XYT-007250*17 mmAdjustableMifare 1k,Ntag213, Ntag215, Ntag216,etc.

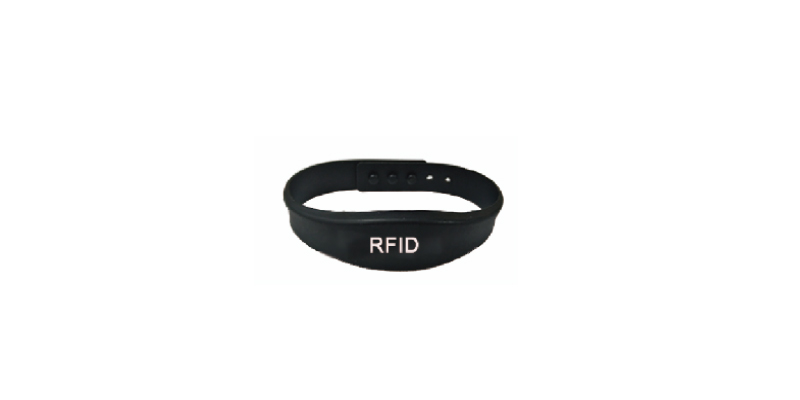

XYT-019230*25 mmAdjustableMifare 1k, Ntag213, Ntag215, Ntag216,etc.

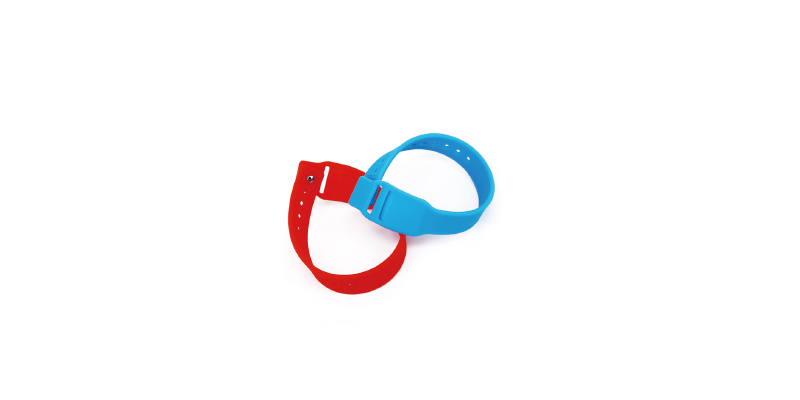

XYT-020262*18 mmAdjustableMifare 1k, Ntag213, Ntag215, Ntag216,etc.

Parameters

Item Oval Close-Loop-Silicone RFID Wristband
Material Silicone
Chip Mifare 1K,NTAG213
Frequency 13.56MHz
Protocol ISO14443A
Color Blue, red, white, black, purple, green, purple, orange (Customizable)
Size Ф45mm|Ф50mm|Ф55mm|Ф60mm|Ф65mm|Ф70mm|Ф72mm|Ф74mm
Eeprom IK
Reading distance 0-10cm
Write Endurance 100000 times
Working Temperature -25°C to 65°C
Data Retention Time 10 years
Printing Options Silk-screen printing, Laser Engraving, CMYK full color, Pantone, etc.
Crafts Available Logo or number printing, Bar code, QR code, etc.
Samples Free samples are available upon request

Product Specification Download
