Chinese LF RFID Sticker Factory will give you the competitive Price, and OEM supplier offers directly Factory price.

Ask For Price

Description

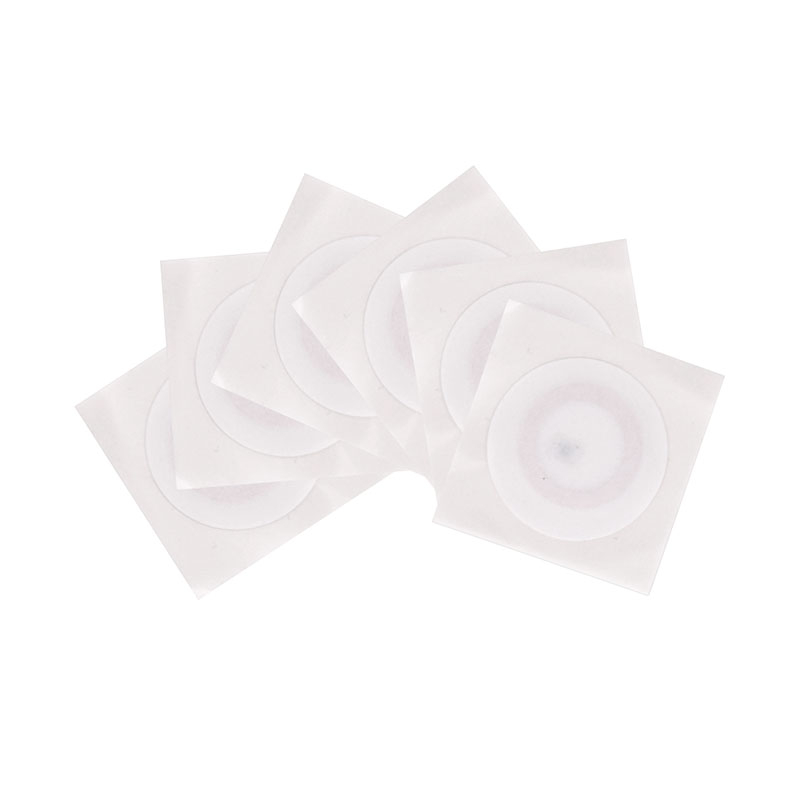

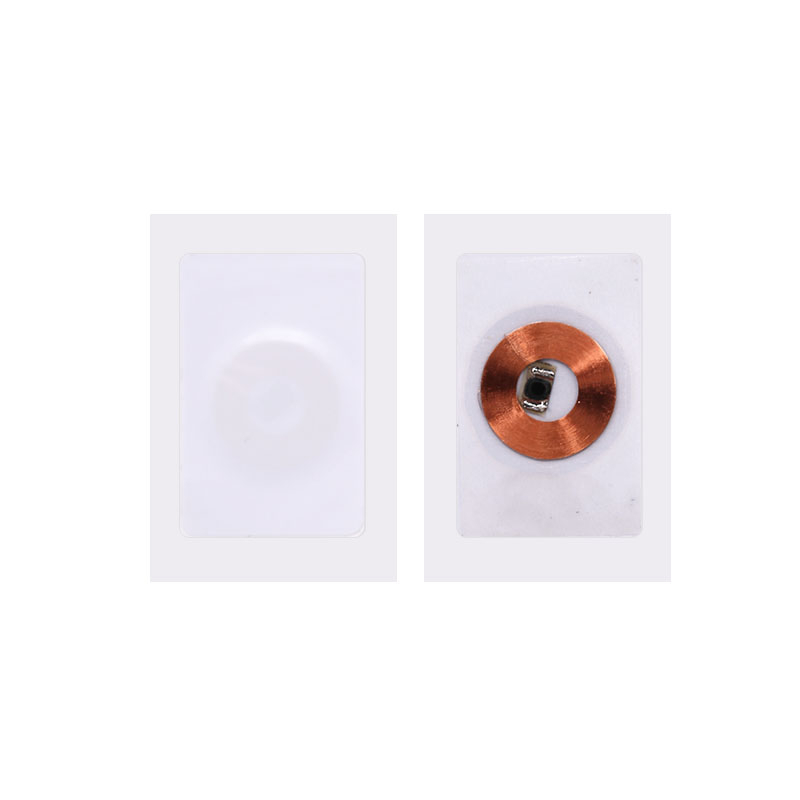

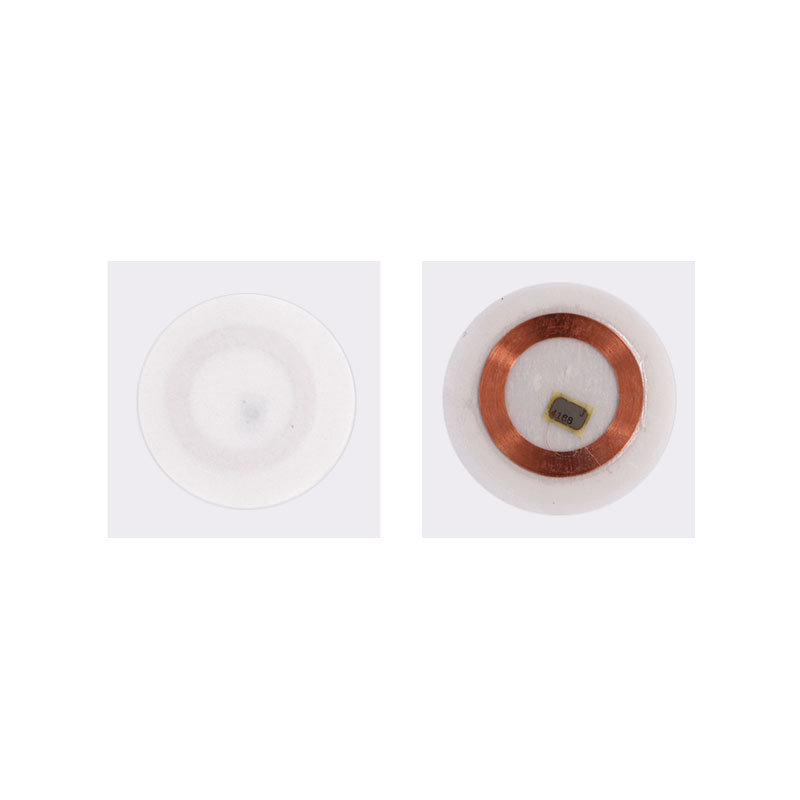

LF RFID Sticker Descriptions

LF RFID Sticker utilizes fully the design innovation of high-tech, environmental protection, saving, and is anew era of science and technology achievements.
Wholesale LF RFID Sticker will be provided the competitive price as our old customer.
Applications of the LF RFID Sticker include subway tickets, bus RFID ticket, access control, identity authentication, payment, product marking etc.


Our Inlay are covered in the surface material to form the final label. These are some materials:
1. Coated Paper: Low cost, easy to print on.
2. PET: Waterproof, heatproof, environmental protection.
3. PVC: Waterproof, corrosion resistance, high-temperature resistance.
4. Normal Double-sided adhesive: Robust, widely used, and cheaper than 3M Glue.
5. 3M Glue: Higher cost but strong viscosity, good temperature tolerance & anti-corrosion.
6. Electrostatic adhesive:Electrostatic prevention, high temperature resistance, strong water resistance

For die-cutting the minimum size should be 4mm bigger than inlay normally.

Parameters

Material

 PVC, Paper

Size

 25mm;30mm;  diameter 25mm;30mm

Chip

 TK4100,EM4200,EM4305,T5577, etc

Frequency

 125KHz

Shipping Details

Generally, 3 days for DHL/FedEx/UPS,
10 days for air shipping,
18 days for sea shipping.

Payment Terms

TT,PayPal, WESTUNION, L/C


Common Chip Types

Protocol

Capacity

Anti-collision

Function

Available 125KHz Chip

TK4100

/

64 bit

No

Read Only

EM4200

/

128 bit

No

Read Only

EM4305

/ 512 bit No Read/Write

T5577

/

330 bits

No

Read/Write

Available 13.56MHz Chip

NTAG® 213

ISO14443A

180 byte

No

Read/Write

NTAG® 215

ISO14443A

540 byte

No

Read/Write

NTAG® 216

ISO14443A

924 byte

No

Read/Write

MIFARE® Classic® 1K

ISO14443A

1 KB

No

Read/Write

MIFARE® Classic® 4K

ISO14443A

4 KB

No

Read/Write

MIFARE® Plus® S 1K

ISO14443A

2 KB/4 KB

No

Read/Write

MIFARE Ultralight® EV1

ISO14443A

48 byte

No

Read/Write

MIFARE Ultralight® C

ISO14443A

144 byte

No

Read/Write

ICODE® SLIX

ISO15693

896 bit

Yes

Read/Write

Available 860-960MHz Chip

Alien H3

ISO18000-6C

512 bit

Yes

Read/Write

Other chips are also available.

NTAG are registered trademarks of NXP B.V. and are used under license.ICODE are registered trademarks of NXP B.V. and are used under license.MIFARE and MIFARE Classic are trademarks of NXP B.V.MIFARE and MIFARE Ultralight are registered trademarks of NXP B.V. and are used under license.MIFARE and MIFARE Plus are registered trademarks of NXP B.V. andare used under license.


Common Package


Note:
Volume
1000 pcs /2000 pcs /5000 pcs in one roll,
10,000 pcs /50,000 pcs /100,000pcs per carton

Weight
About 2KG for 1000 pcs

Carton Size
49*23*20 cm
49*23*26 cm
Special demands for packing available.

Applications




Available Applications:
virtually on any surface, metal,plastic,wood,paper,used for animals tracking, library management,mobile phone payment, anti-fake wine management, etc.
